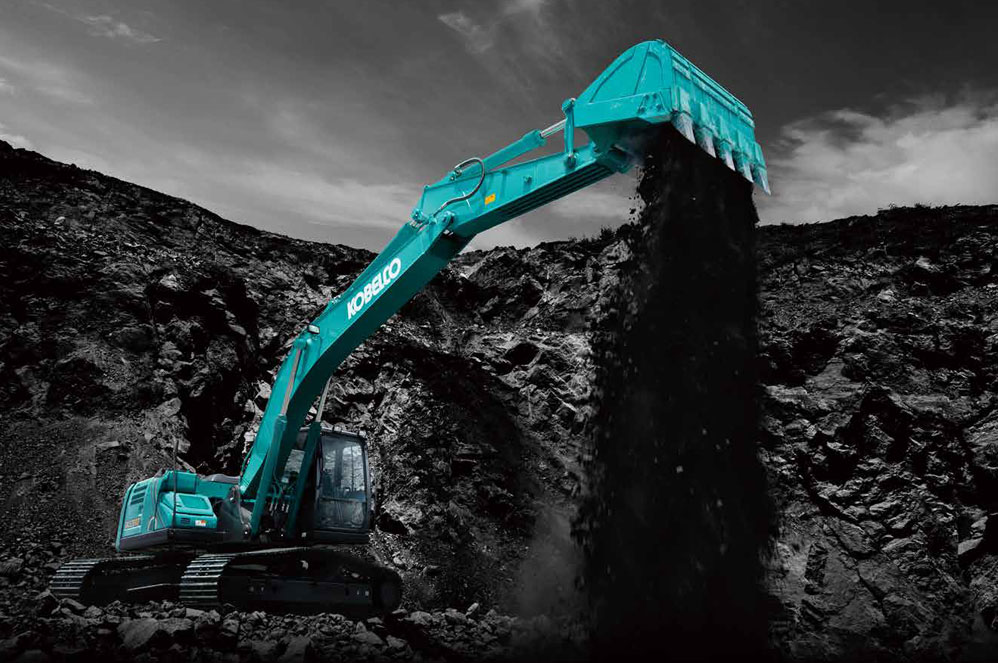

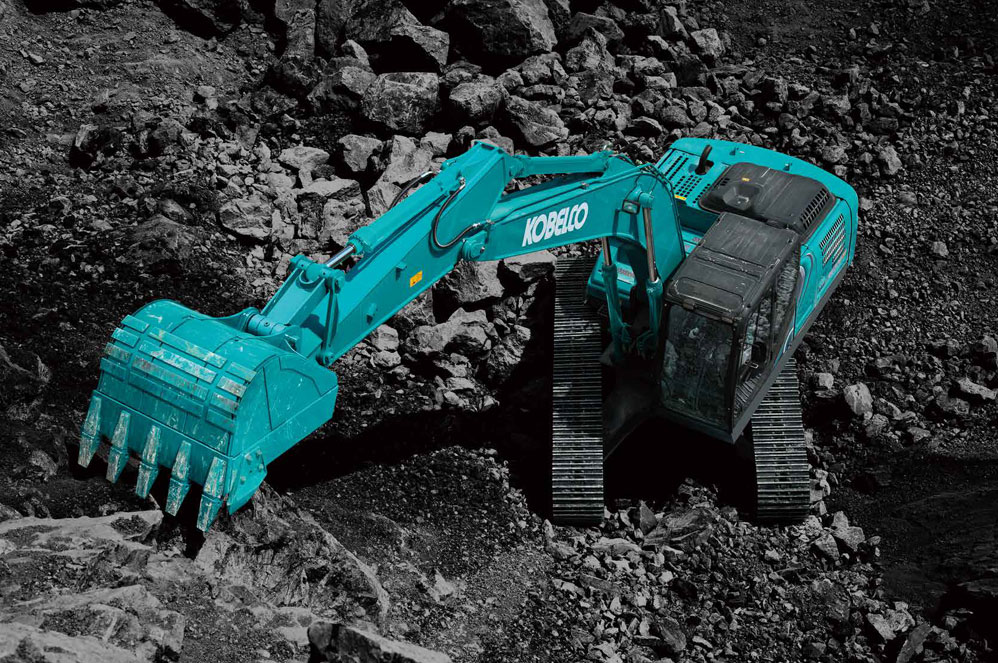

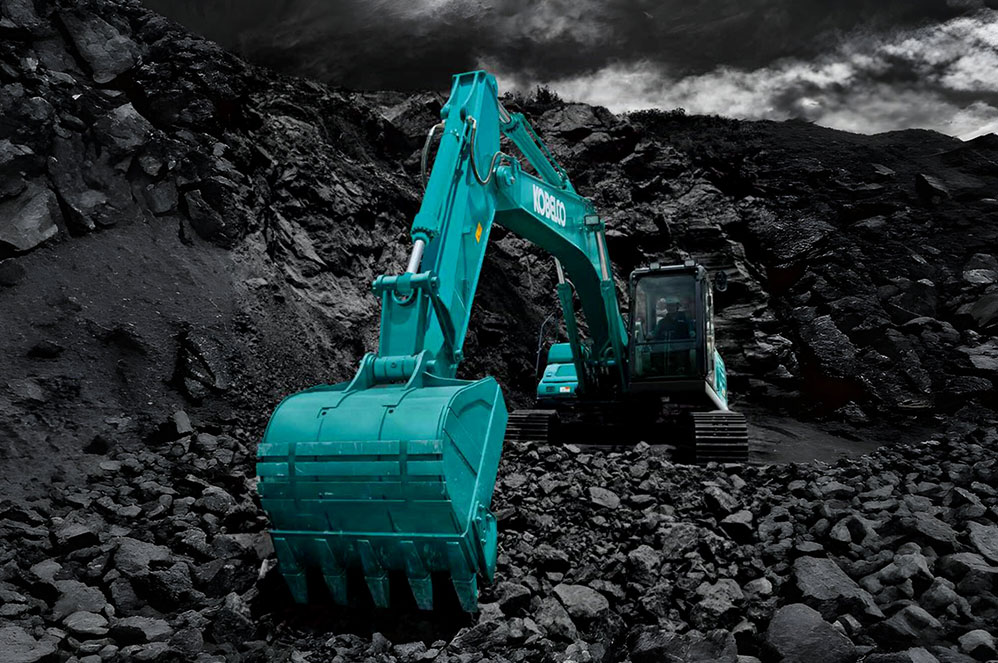

Engineered for excellence, the SK220XD medium excavator by Kobelco ensures optimized performance for construction and mining projects.
Kobelco
Medium (15-25 Ton)
Price Available Soon
Price Available Soon
21800 Kg
0.8 - 0.93 m³
6160 mm
HINO 158 HP
1 Yr. / 2500 hr.
5650 mm
Get the best price for the Kobelco SK220XD Medium Excavator from authorized dealers. Contact us now for exclusive deals!
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
HINO J05ETA* - J05ETG
320 L
5.123 L
3370 mm
2 x 220, 1 x 20 L/min
2400 mm
9420 mm
NA
2800 mm
9680 mm
143 kN
2910 mm
600 mm
Standard
Standard
Stronger attachment
Big cross-section boom of thicker steel plate
Powerful travel system for easy transit over loose rocks
Reinforced arm strength
Large, reinforced track guides
Improved filtration system
Thick upper under covers for protection
Modified foot boss shape
Specially designed rock guards
Thicker steel plate for shoes
Reinforced guide frame
Reinforced travel motor cover
Lower frame underside cover to protect against damage
Increase track link size
Arm regeneration system
Hydraulic circuit reduces energy loss
Fuel-saving ECO-mode
Auto Idle Stop (AIS)
Common rail system with high-pressure injection
Larger cab for easy ingress & egress
A lighter touch lever for reducing operator fatigue
Air conditioner louvers behind the seat
Super airtight cab
Wide front window for unobstructed view
Convenient interior equipment
Expanded field of view for greater safety
One-touch attachment mode switch
Spacious engine compartment for easy, on-the-spot maintenance
The layout allows for easy access from ground level
Easy removal of internal and external air conditioner filters
Easy cleaning with detachable two-piece floor mat and a floor drain
Product specification of Kobelco SK220XD Excavator
Model
HINO J05ETA* - J05ETG
Fuel
Diesel
Type
4 Cylinders, Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler
Rated Engine Power
158 HP (118kW) @ 2000 rpm
Maximum Torque
592 Nm @ 1600 rpm
Piston Displacement
5.123 L
Alternator
50A
Battery
2 x 12 V, 104 Ah
Starting Motor
24V - 5 kW
No of Top Rollers
NA
No of Bottom Rollers
NA
Track Shoes (Each Side)
46
Track Guard
NA
Track Shoe Width
600 mm
Ground Bearing Pressure
46 kPa
Track Tensioning
Grease
Gradeability
70% (35°)
Travel Speed-Low
3.6 Km/h
Travel Speed-High
6.0 Km/h
Max Tracking Force
228 kN
Hydraulic Pump
Two variable displacement pumps
Maximum Flow
2 x 220 L/min, 1 x 20 L/min
Pilot Pump
1 Gear Pump
Implement Circuit
34.3 MPa
Swing Circuit
29.0 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
5.0 MPa
Travel
2 x axial-piston, two-step motors Hydraulic brake per motor
Swing
Axial piston motor Hydraulic; locking automatically when the swing control lever is in neutral position
Fuel Tank
320 L
Engine Coolant
18 L
Engine Oil
20.5 L
Hydraulic System
244 L
Hydraulic Tank
140 L
Operating Weight
21800 Kg
Boom Length
5650 mm
Arm Length
2400 mm
Max. Digging Reach
9420 mm
Max. Digging Reach on Ground
9240 mm
Max. Digging Depth
6160 mm
Max. Digging Height
9510 mm
Max. Dumping Height
6680 mm
Max. Vertical Wallcut Depth
5570 mm
Min. Swing Radius
3560 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
4080 mm
Dig Depth (Below Ground)
5950 mm
Bucket Digging Force
143 kN
Arm Digging Force
121 kN
Swing Speed
13.3 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
0.8 - 0.93 m³
Overall Length
9680 mm
Overall Width
2800 mm
Overall Height
3220 mm
Overall Height of Cab
3020 mm
Upper Width
2710 mm
Track Lengh on Ground
4180 mm
Undercarriage Overall Length
3370 mm
Tailswing Radius
2910 mm
Min. Ground Clearance
435 mm
Track Gauge
2200 mm
Width Over Tracks
NA
Track Height
NA
Counterweight Clearence
1070 mm
Track Shoe Width
600 mm
The exact Kobelco SK220XD Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the Kobelco SK220XD excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Kobelco SK220XD comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Kobelco SK220XD excavator is approximately 21800 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Kobelco SK220XD excavator is powered by a HINO J05ETA* – J05ETG engine, delivering 158 HP (118kW) at 2000 rpm.
The Kobelco SK220XD excavator has a maximum digging depth of 6160 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Kobelco SK220XD Excavator ranges from 0.8 to 0.93 cubic meters (m³).
The Kobelco SK220XD Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Kobelco SK220XD excavator at authorized Kobelco dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Kobelco SK220XD excavator has a 320 litres diesel fuel tank, providing extended operation time without frequent refueling.
