    Dynapac CP275 VS Volvo PT220 Compactor

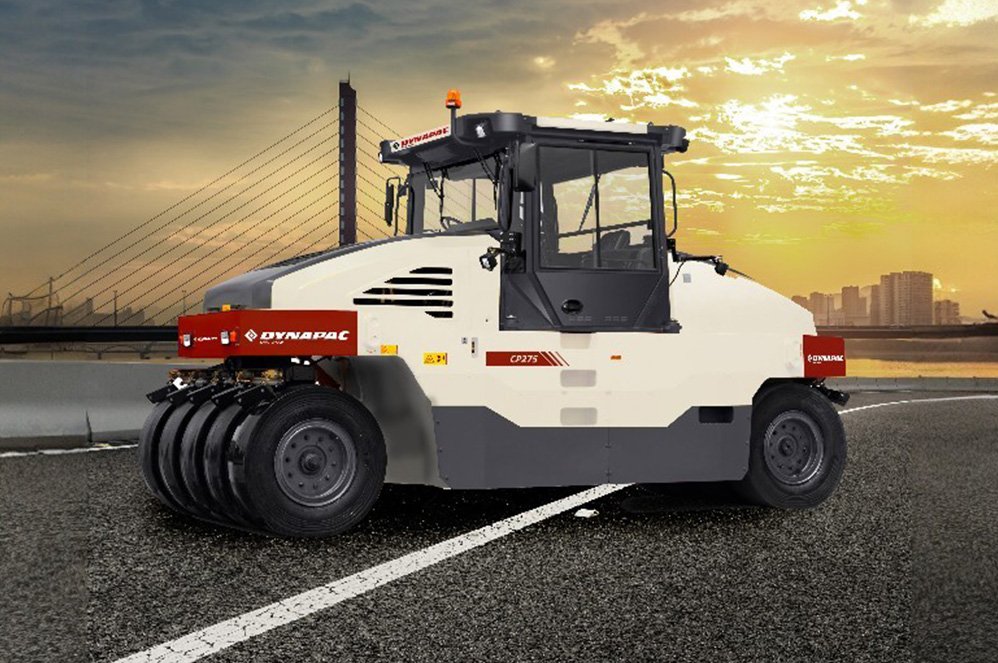

    Dynapac CP275 Compactor
    ₹ 25-30 Lakhs*

    Dynapac CP275

    • icon alt1 Weight

      14000 Kg

    • Engine

      Cummins 125 HP

    • No. of Tyres

      8

    • Tyre Pressure

      3.8 / 7.8.0 bar

    • Rolling Width

      2370 mm

    • Travel Speed

      18 km/hr
    Pneumatic Roller
    Volvo PT220 Price in India
    Price Available Soon*

    Volvo PT220

    • icon alt1 Weight

      10500 kg

    • Engine

      VECV 99 HP

    • No. of Tyres

      8

    • Tyre Pressure

      3.5 / 8.0 bar

    • Rolling Width

      1980 mm

    • Travel Speed

      16 km/hr
    Pneumatic Roller

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before making any final decision.

    Key Highlights Dynapac CP275Volvo PT220
    Dynapac CP275 VS Volvo PT220 Compactor
    Dynapac CP275 Compactor
    Dynapac CP275

    ₹ 25-30 Lakhs

    Volvo PT220 Price in India
    Volvo PT220

    Price Available Soon

    Particulars Dynapac CP275 Volvo PT220

    Dynapac CP275 vs Volvo PT220: Which One to Buy?

    The Dynapac CP275 gives you more engine power, bigger fuel and water tanks, and a wider working width, while the Volvo PT220 focuses on safety and easy control. The Dynapac CP275 runs a 125 HP engine with a 2370 mm working width and can carry up to 30,000 kg when ballasted, so it covers more ground per pass on large road jobs. The Volvo PT220 runs a 99 HP engine but adds ROPS protection, a SAHR parking brake, hydraulic power-assisted steering, and a tighter 6800 mm turning radius for easier handling.

    Choose based on the size of your job and how much you value easy control versus raw output. If you are compacting large stretches and want bigger tanks so you refill less often, the CP275 fits better. If you want a compactor that is simpler to steer, safer to operate, and turns in a tighter space, the PT220 is the better fit. Check the full Dynapac range, the Volvo range, all pneumatic tyred rollers, or read our compactor buying guide.

    Dynapac CP275 Pneumatic Tyred Roller Compactor

    Pros:

    • Higher engine power of 125 HP results in robust performance
    • Larger fuel and water tanks (320 L and 600 L respectively) for extended operation
    • Wider working width of 2370 mm for increased productivity
    • More substantial ballasted maximum weight at 30000 kg contributes to better compaction
    • Optional telematics for equipment monitoring and management

    Cons:

    • Higher operating weight of 14000 Kg could restrict use on sensitive surfaces
    • Lacks details on service brake specifics
    • Tire specifications such as width and diameter not provided

    Volvo PT220 Pneumatic Tyred Roller Compactor

    Pros:

    • Advanced filtration system for water spray ensures nozzle efficiency
    • Safety through ROPS features and SAHR parking brake
    • Superior gradeability at 23% for incline performance
    • Inside turning radius of 6800 mm allows for better maneuverability
    • Hydraulic power-assisted steering for precise control
    • Coco mat tire wipers for cleaner operation

    Cons:

    • Lower engine power of 99 HP
    • Smaller fuel and water tanks (200 L and 550 L respectively) could mean more frequent refilling
    • Narrower working width of 1980 mm which may affect productivity
    • Less maximum ballasted weight of 24000 kg could impact compaction capability
    • 1 Year / 2000 hr warranty may be less than some competitors

    Pros:

    Cons:

    Closing Recommendation

    Both these pneumatic tyred rollers do the same core job of compacting road surfaces, but they suit different priorities. The Dynapac CP275 gives you more engine power, bigger tanks, and a wider working width, which suits large-scale jobs where output matters most. The Volvo PT220 gives you more safety features, easier steering, and a tighter turning radius, which suits sites where control and safety matter more than raw size. So match the machine to your work: Dynapac CP275 for high-output work on large stretches, Volvo PT220 for safer, easier handling on tighter or mixed sites.

    Dynapac CP275 Vs Volvo PT220 Compactor Price, Technical Specifications & Features

    Brand Dynapac Compactor Volvo Compactor
    Type Pneumatic Tyred Pneumatic Tyred
    Ex-Factory Price (GST incl.) ₹ 25-30 Lakhs Price Available Soon
    Weight 14000 Kg 10500 kg
    Engine Cummins 125 HP VECV 99 HP
    No. of Tyres 8 8
    Tyre Pressure 3.8 / 7.8.0 bar 3.5 / 8.0 bar
    Rolling Width 2370 mm 1980 mm
    Travel Speed 18 km/hr 16 km/hr
    Quick Overview:

    The Dynapac CP275 pneumatic tyred roller is a robust compaction solution engineered for premium performance. As a top-class dynapac roller, it excels as a road roller and compactor machine for asphalt and sub-base surfaces, delivering even pressure through its multiple rubber tyres and adjustable ballast. This PTR roller features a powerful diesel engine, hydraulic drive, and advanced safety systems to ensure efficiency, reliability, and operator comfort. With its large water spray and fuel systems, tyre overlap, and wide rolling path, the CP275 ensures stable, high-quality compaction with minimized downtime.

    The Volvo PT220 pneumatic tyred roller is a powerful ptr roller engineered for superior performance in road construction. Acting as a dynapac roller class machine, it operates as both road roller and compactor machine—delivering high compaction quality with its overlapping 8-tyre configuration and hydrostatic drive. With an operating weight up to ~24 tonnes, a potent 99 kW / 135 HP engine, 1.98 m rolling width and pressurised tyre-wetting system, the PT220 ensures smooth, uniform compaction across asphalt and granular surfaces. Its ROPS safety features, operator comfort seats and easy maintenance access enhance reliability and uptime.

    Dynapac CP275 vs Volvo PT220: Which One to Buy?

    The Dynapac CP275 gives you more engine power, bigger fuel and water tanks, and a wider working width, while the Volvo PT220 focuses on safety and easy control. The Dynapac CP275 runs a 125 HP engine with a 2370 mm working width and can carry up to 30,000 kg when ballasted, so it covers more ground per pass on large road jobs. The Volvo PT220 runs a 99 HP engine but adds ROPS protection, a SAHR parking brake, hydraulic power-assisted steering, and a tighter 6800 mm turning radius for easier handling.

    Choose based on the size of your job and how much you value easy control versus raw output. If you are compacting large stretches and want bigger tanks so you refill less often, the CP275 fits better. If you want a compactor that is simpler to steer, safer to operate, and turns in a tighter space, the PT220 is the better fit. Check the full Dynapac range, the Volvo range, all pneumatic tyred rollers, or read our compactor buying guide.

    Dynapac CP275 Pneumatic Tyred Roller Compactor

    Pros:

    • Higher engine power of 125 HP results in robust performance
    • Larger fuel and water tanks (320 L and 600 L respectively) for extended operation
    • Wider working width of 2370 mm for increased productivity
    • More substantial ballasted maximum weight at 30000 kg contributes to better compaction
    • Optional telematics for equipment monitoring and management

    Cons:

    • Higher operating weight of 14000 Kg could restrict use on sensitive surfaces
    • Lacks details on service brake specifics
    • Tire specifications such as width and diameter not provided

    Volvo PT220 Pneumatic Tyred Roller Compactor

    Pros:

    • Advanced filtration system for water spray ensures nozzle efficiency
    • Safety through ROPS features and SAHR parking brake
    • Superior gradeability at 23% for incline performance
    • Inside turning radius of 6800 mm allows for better maneuverability
    • Hydraulic power-assisted steering for precise control
    • Coco mat tire wipers for cleaner operation

    Cons:

    • Lower engine power of 99 HP
    • Smaller fuel and water tanks (200 L and 550 L respectively) could mean more frequent refilling
    • Narrower working width of 1980 mm which may affect productivity
    • Less maximum ballasted weight of 24000 kg could impact compaction capability
    • 1 Year / 2000 hr warranty may be less than some competitors

    Pros:

    Cons:

    Closing Recommendation

    Both these pneumatic tyred rollers do the same core job of compacting road surfaces, but they suit different priorities. The Dynapac CP275 gives you more engine power, bigger tanks, and a wider working width, which suits large-scale jobs where output matters most. The Volvo PT220 gives you more safety features, easier steering, and a tighter turning radius, which suits sites where control and safety matter more than raw size. So match the machine to your work: Dynapac CP275 for high-output work on large stretches, Volvo PT220 for safer, easier handling on tighter or mixed sites.

    Dynapac CP275 Vs Volvo PT220 Compactor Price, Technical Specifications & Features

    Dynapac CP275 Volvo PT220
    Brand
    Dynapac Compactor Volvo Compactor
    Type
    Pneumatic Tyred Pneumatic Tyred
    Ex-Factory Price (GST incl.)
    ₹ 25-30 Lakhs Price Available Soon
    Weight
    14000 Kg 10500 kg
    Engine
    Cummins 125 HP VECV 99 HP
    No. of Tyres
    8 8
    Tyre Pressure
    3.8 / 7.8.0 bar 3.5 / 8.0 bar
    Rolling Width
    2370 mm 1980 mm
    Travel Speed
    18 km/hr 16 km/hr
    Quick Overview:

    The Dynapac CP275 pneumatic tyred roller is a robust compaction solution engineered for premium performance. As a top-class dynapac roller, it excels as a road roller and compactor machine for asphalt and sub-base surfaces, delivering even pressure through its multiple rubber tyres and adjustable ballast. This PTR roller features a powerful diesel engine, hydraulic drive, and advanced safety systems to ensure efficiency, reliability, and operator comfort. With its large water spray and fuel systems, tyre overlap, and wide rolling path, the CP275 ensures stable, high-quality compaction with minimized downtime.

    The Volvo PT220 pneumatic tyred roller is a powerful ptr roller engineered for superior performance in road construction. Acting as a dynapac roller class machine, it operates as both road roller and compactor machine—delivering high compaction quality with its overlapping 8-tyre configuration and hydrostatic drive. With an operating weight up to ~24 tonnes, a potent 99 kW / 135 HP engine, 1.98 m rolling width and pressurised tyre-wetting system, the PT220 ensures smooth, uniform compaction across asphalt and granular surfaces. Its ROPS safety features, operator comfort seats and easy maintenance access enhance reliability and uptime.

    Dynapac CP275 Vs Volvo PT220 Compactor Key Highlights

    Dynapac CP275 Volvo PT220
    Engine Make Cummins 4BTAA3.9 II/T2 VECV E494 - CEV Stage-V
    Fuel Tank 320 L 200 L
    Hydraulic Tank NA 105 L
    Steering Angle NA NA
    Turning Radius, Outside 9000 mm NA
    Wheelbase Not Available Not Available
    Water Tank 600 L 550 L
    Tyre Size 13/80-20 11.0 - 20. 18PR
    Driven Wheels NA Rear
    Wheel Load Per Tyre 3333 kg 3000 kg
    Overall Length 5310 mm 5060 mm
    Overall Width 2370 mm 2270 mm
    Overall Height 3080 mm 3635 mm
    Telematics Optional Optional
    Warranty 18 Months 1 Yr. / 2000 hr.

    Dynapac CP275 Vs Volvo PT220 Compactor Key Highlights

    Dynapac CP275 Volvo PT220
    Engine Make
    Cummins 4BTAA3.9 II/T2 VECV E494 - CEV Stage-V
    Fuel Tank
    320 L 200 L
    Hydraulic Tank
    NA 105 L
    Steering Angle
    NA NA
    Turning Radius, Outside
    9000 mm NA
    Wheelbase
    Not Available Not Available
    Water Tank
    600 L 550 L
    Tyre Size
    13/80-20 11.0 - 20. 18PR
    Driven Wheels
    NA Rear
    Wheel Load Per Tyre
    3333 kg 3000 kg
    Overall Length
    5310 mm 5060 mm
    Overall Width
    2370 mm 2270 mm
    Overall Height
    3080 mm 3635 mm
    Telematics
    Optional Optional
    Warranty
    18 Months 1 Yr. / 2000 hr.

    Dynapac CP275 Vs Volvo PT220 Compactor Specifications

    Engine

    Dynapac CP275 Volvo PT220
    Engine Make Cummins 4BTAA3.9 II/T2 VECV E494 - CEV Stage-V
    Engine Type Water-cooled; Turbo charged; Diesel engine CEV-V; Turbo charged; Water cooled
    Max. Power 125 HP (93 kW ) @ 2200 rpm 99 HP (74 kW)
    Displacement 3.9 L 3.8 L
    Battery 24 V 12 V DC / 90 A Alternator

    Water Spray System

    Dynapac CP275 Volvo PT220
    Water Spray Type Pressurized Pressure spray tire wetting system with LDPE water tank
    Spray Pump Type NA One water Pump for Front and rear Tires
    Nozzles Spray Bars One per tyre Hand-serviceable spray nozzles
    Filtration NA Filter baskets in fill necks; primary filter at pump; fine filter for each nozzle
    Tire Wipers NA Front & rear Coco Mat for each tire

    Brakes

    Dynapac CP275 Volvo PT220
    Service Brake Drum brakes Dynamic hydrostatic through propulsion system
    Parking Brake Failsafe multidisc brakes in gear box SAHR on REAR Motors

    Service Capacities

    Dynapac CP275 Volvo PT220
    Fuel Tank 320 L 200 L
    Hydraulic Tank NA 105 L
    Engine Oil NA NA
    Water Tank 600 L 550 L
    Engine Coolant NA NA
    Adblue/ DEF tank NA NA

    Steering

    Dynapac CP275 Volvo PT220
    Steering Type Gear pump with constant displacement Hydraulic Power assisted
    Steering Angle NA NA
    Oscillation NA NA
    Turning Radius, Outside 9000 mm NA
    Turning Radius, Inside NA 6800 mm

    Drive System

    Dynapac CP275 Volvo PT220
    Drive System Type Axial piston pump with variable displacement. Axial piston motor with variable displacement. Closed-loop hydrostatic
    Travel Speed 18 km/hr 16 km/hr
    Working Speed 7 km/hr 8 km/hr
    Gradeability NA 23%
    Driven Wheels NA Rear

    Weight

    Dynapac CP275 Volvo PT220
    Maximum Weight (Ballasted) 30000 kg 24000 kg
    Operating Weight 14000 Kg 10500 kg
    Wheel Load Per Tyre 3333 kg 3000 kg

    Tyre

    Dynapac CP275 Volvo PT220
    Working Width 2370 mm 1980 mm
    Tyre Overlap 52 mm 50 mm
    Number of Tires 8 8
    Tyre Size 13/80-20 11.0 - 20. 18PR
    Tire Pressure (Min/Max) 3.8 / 7.8.0 bar 3.5 / 8.0 bar

    Dimensions

    Dynapac CP275 Volvo PT220
    Overall Length 5310 mm 5060 mm
    Overall Width 2370 mm 2270 mm
    Overall Height 3080 mm 3635 mm
    Overall Rolling width 2370 mm 1980 mm
    Wheel Base 4250 mm 3520 mm
    Ground Clearance Not Available 265 mm
    Tire Width NA 292 mm
    Space Between Tires NA 1070 mm
    Height (Top of Steering) 2430 mm 2750 mm

    Dynapac CP275 Vs Volvo PT220 Compactor Specifications

    Engine

    Dynapac CP275 Volvo PT220
    Engine Make
    Cummins 4BTAA3.9 II/T2 VECV E494 - CEV Stage-V
    Engine Type
    Water-cooled; Turbo charged; Diesel engine CEV-V; Turbo charged; Water cooled
    Max. Power
    125 HP (93 kW ) @ 2200 rpm 99 HP (74 kW)
    Displacement
    3.9 L 3.8 L
    Battery
    24 V 12 V DC / 90 A Alternator

    Water Spray system

    Dynapac CP275 Volvo PT220
    Water Spray Type
    Pressurized Pressure spray tire wetting system with LDPE water tank
    Spray Pump Type
    NA One water Pump for Front and rear Tires
    Nozzles Spray Bars
    One per tyre Hand-serviceable spray nozzles
    Filtration
    NA Filter baskets in fill necks; primary filter at pump; fine filter for each nozzle
    Tire Wipers
    NA Front & rear Coco Mat for each tire

    Brakes

    Dynapac CP275 Volvo PT220
    Service Brake
    Drum brakes Dynamic hydrostatic through propulsion system
    Parking Brake
    Failsafe multidisc brakes in gear box SAHR on REAR Motors

    Service Capacities

    Dynapac CP275 Volvo PT220
    Fuel Tank
    320 L 200 L
    Hydraulic Tank
    NA 105 L
    Engine Oil
    NA NA
    Water Tank
    600 L 550 L
    Engine Coolant
    NA NA
    Adblue/ DEF tank
    NA NA

    Steering

    Dynapac CP275 Volvo PT220
    Steering Type
    Gear pump with constant displacement Hydraulic Power assisted
    Steering Angle
    NA NA
    Oscillation
    NA NA

    Drive System

    Dynapac CP275 Volvo PT220
    Drive System Type
    Axial piston pump with variable displacement. Axial piston motor with variable displacement. Closed-loop hydrostatic
    Travel Speed
    18 km/hr 16 km/hr
    Working Speed
    7 km/hr 8 km/hr
    Gradeability
    NA 23%
    Driven Wheels
    NA Rear

    Weight

    Dynapac CP275 Volvo PT220
    Maximum Weight (Ballasted)
    30000 kg 24000 kg
    Operating Weight
    14000 Kg 10500 kg
    Wheel Load Per Tyre
    3333 kg 3000 kg

    Tyre

    Dynapac CP275 Volvo PT220
    Working Width
    2370 mm 1980 mm
    Tyre Overlap
    52 mm 50 mm
    Number of Tires
    8 8
    Tyre Size
    13/80-20 11.0 - 20. 18PR
    Tire Pressure (Min/Max)
    3.8 / 7.8.0 bar 3.5 / 8.0 bar

    Dimensions

    Dynapac CP275 Volvo PT220
    Overall Length
    5310 mm 5060 mm
    Overall Width
    2370 mm 2270 mm
    Overall Height
    3080 mm 3635 mm
    Overall Rolling width
    2370 mm 1980 mm
    Wheel Base
    4250 mm 3520 mm
    Ground Clearance
    Not Available 265 mm
    Tire Width
    NA 292 mm
    Space Between Tires
    NA 1070 mm
    Height (Top of Steering)
    2430 mm 2750 mm

    Popular Comparisons with Dynapac CP275

    VS
    Dynapac CP275 Compactor
    Dynapac Dynapac CP275
    4.5 rating
    ₹ 25-30 Lakhs
    14000 kg

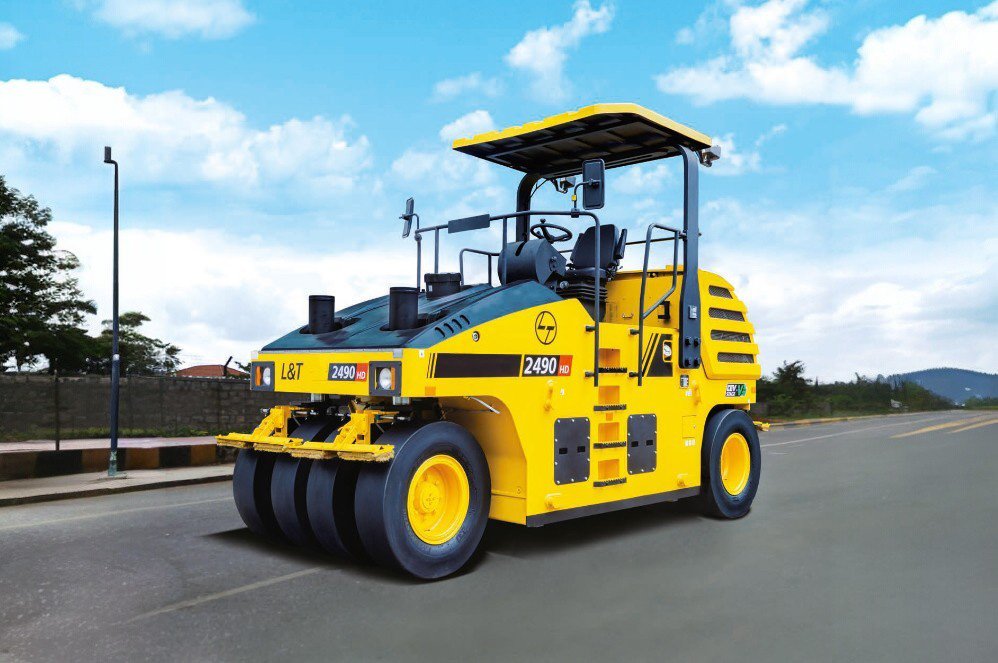

    L&T 2490 Soil Compactor Price
    L&T Komatsu L&T 2490 HD
    4.5 rating
    ₹ 35-37 Lakhs
    12800 kg
    Compare

    Frequently Asked Question

    Ans.

    The Dynapac CP275 has more engine power at 125 HP against the Volvo PT220's 99 HP. This extra power helps the CP275 keep pace on bigger jobs and wider working widths.

    Ans.

    The Volvo PT220 has more built-in safety features. It comes with ROPS protection over the driver and a SAHR parking brake that applies automatically if hydraulic pressure drops, which the CP275's listed specs do not mention.

    Ans.

    The Dynapac CP275 needs less frequent refilling. Its fuel tank holds 320 litres and its water tank holds 600 litres, both bigger than the PT220's 200 litre fuel and 550 litre water tanks.

    Ans.

    The Volvo PT220 turns in a tighter space, with an inside turning radius of 6800 mm helped by its hydraulic power-assisted steering. This makes it easier to work in narrower sites and tight corners.

    Ans.

    Yes, the Dynapac CP275 offers optional telematics for tracking the machine's location and use. This is useful for fleet owners who run several compactors across different sites.

    Ans.

    The Volvo PT220 handles slopes better, with a gradeability rating of 23 percent. This matters for road jobs with graded sections or camber where the roller needs to hold its line on an incline.

    Dynapac CP275 Vs Volvo PT220 - Compare Price & Availability Across 600+ Locations in India

    Compare Dynapac CP275 Vs Volvo PT220 price and availability across all major cities in India including Mumbai, Pune, Kolkata, Hyderabad, Chennai, Bengaluru, Delhi, Ahmedabad, Indore, Jaipur, Guwahati, and 600+ more locations.

    Maharashtra
    26 cities

    • Mumbai

    • Pune

    • Nagpur

    • Navi Mumbai

    • Thane

    • Nashik

    • Aurangabad (Chhatrapati Sambhajinagar)

    • Solapur

    • Kolhapur

    • Amravati

    • Chandrapur

    • Yavatmal

    • Latur

    • Dhule

    • Ahmednagar

    • Jalgaon

    • Raigad

    • Beed

    • Wardha

    • Palghar

    • Sangli

    • Ratnagiri

    • Satara

    • Nanded

    • Akola

    • Buldhana

    Gujarat
    21 cities

    • Ahmedabad

    • Gandhinagar

    • Surat

    • Vadodara

    • Rajkot

    • Bhavnagar

    • Jamnagar

    • Mundra

    • Kutch

    • Vapi

    • Anand

    • Mehsana

    • Morbi

    • Surendranagar

    • Amreli

    • Bharuch

    • Navsari

    • Dahej

    • Alang

    • Dholera

    • Gandhidham

    Goa
    5 cities

    • Panaji

    • Vasco da Gama

    • Margao

    • Calangute

    • Mormugao

    Disclaimer: *All logos, trademarks, brand names, images, videos, documents, and product information displayed on DesiMachines are the property of their respective owners. DesiMachines is an independent aggregator working with OEMs, authorised dealers, channel partners, and publicly available sources. Display of any brand or content does not imply partnership or endorsement. Product details, specifications, prices, and availability are indicative and subject to change. Users should verify final details with the respective dealer or seller. DesiMachines is not liable for any inaccuracies or decisions made based on the information provided.

    !

    Let's get started

    Disclaimer

    Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

    Compare
