The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.
| Key Highlights | Escorts Digmax II XP | Mahindra SX IV |
|---|
| Particulars | Escorts Digmax II XP | Mahindra SX IV |
|---|

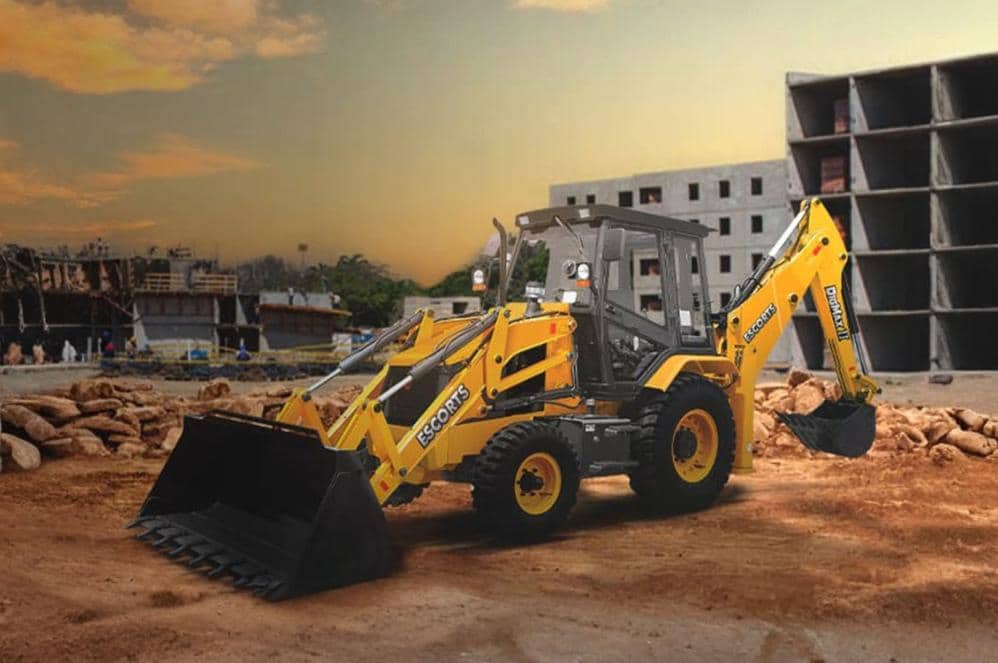

The Escorts Digmax II XP boasts advanced hydraulics, excellent stability, and higher lifting capabilities, making it suitable for heavy-duty earthmoving tasks. In contrast, the Mahindra SX IV emphasizes job site efficiency, reduced fuel consumption, and faster maximum speed, ideal for projects requiring quick movement and fuel economy.
If you prioritize raw power and digging capabilities, Escorts Digmax II XP might be the better choice. However, for projects where speed, efficiency, and fuel economy are crucial, Mahindra SX IV would be recommended.
| Brand | Escorts Kubota Backhoe Loader | Mahindra Backhoe Loader |
|---|---|---|
| Type | 2WD | 2WD |
| Price | ₹ 32-34 Lakhs | ₹ 31-33 Lakhs |
| Engine | Kirloskar 74.5 HP | Mahindra 74 HP |
| Bucket | 0.26 m³ | 0.27 m³ |
| Shovel | 1.2 m³ | 1.1 m³ |
| Max Digging Depth | 4800 mm | 4959 mm |
| Max Dump Height | 3000 mm | 2708 mm |
| Weight | 8190 Kg | 7430 Kg |
| Quick Overview: | The Escorts DIGMAX II XP backhoe loader delivers superior breakout force, advanced hydraulics, and excellent stability for efficient earthmoving. |
Mahindra Earthmaster SX IV backhoe loader enhances job site efficiency with superior technology, smooth operations, and reduced fuel consumption for better productivity. |
The Escorts Digmax II XP boasts advanced hydraulics, excellent stability, and higher lifting capabilities, making it suitable for heavy-duty earthmoving tasks. In contrast, the Mahindra SX IV emphasizes job site efficiency, reduced fuel consumption, and faster maximum speed, ideal for projects requiring quick movement and fuel economy.
If you prioritize raw power and digging capabilities, Escorts Digmax II XP might be the better choice. However, for projects where speed, efficiency, and fuel economy are crucial, Mahindra SX IV would be recommended.
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Brand | |
| Escorts Kubota Backhoe Loader | Mahindra Backhoe Loader |
| Type | |
| 2WD | 2WD |
| Price | |
| ₹ 32-34 Lakhs | ₹ 31-33 Lakhs |
| Engine | |
| Kirloskar 74.5 HP | Mahindra 74 HP |
| Bucket | |
| 0.26 m³ | 0.27 m³ |
| Shovel | |
| 1.2 m³ | 1.1 m³ |
| Max Digging Depth | |
| 4800 mm | 4959 mm |
| Max Dump Height | |
| 3000 mm | 2708 mm |
| Weight | |
| 8190 Kg | 7430 Kg |
| Quick Overview: | |
The Escorts DIGMAX II XP backhoe loader delivers superior breakout force, advanced hydraulics, and excellent stability for efficient earthmoving. |
Mahindra Earthmaster SX IV backhoe loader enhances job site efficiency with superior technology, smooth operations, and reduced fuel consumption for better productivity. |
| Escorts Digmax II XP | Mahindra SX IV | |
| Engine Make | Kirloskar 4R1190TA | Mahindra VNEF |
| Fuel Tank | 134 L | 140 L |
| Max Torque | 400 Nm @ 1200 RPM | 345 Nm @ 1200-1500 RPM |
| Max Speed | 36.6 km/hr | 38.37 km/hr |
| Hydraulic System | 80 L | 100 L |
| Max Working Height | 6300 mm | 6043 mm |
| Excavator Max Lift Capacity | 1554 kg | 1449 kg |
| Loader Load Over Height | 4390 mm | 4131 mm |
| Overall Length | 6280 mm | NA |
| Wheel Base | 2140 mm | NA |
| Bucket Digging Force | 6018 kgf | 5199 kgf |
| Shovel Breakout Force | 6425 kgf | 6243 kgf |
| Warranty | 1 Year | 1 Year |
| AC Cabin | Optional | Optional |
| GPS | Standard | Standard |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Engine Make | |
| Kirloskar 4R1190TA | Mahindra VNEF |
| Fuel Tank | |
| 134 L | 140 L |
| Max Torque | |
| 400 Nm @ 1200 RPM | 345 Nm @ 1200-1500 RPM |
| Max Speed | |
| 36.6 km/hr | 38.37 km/hr |
| Hydraulic System | |
| 80 L | 100 L |
| Max Working Height | |
| 6300 mm | 6043 mm |
| Excavator Max Lift Capacity | |
| 1554 kg | 1449 kg |
| Loader Load Over Height | |
| 4390 mm | 4131 mm |
| Overall Length | |
| 6280 mm | NA |
| Wheel Base | |
| 2140 mm | NA |
| Bucket Digging Force | |
| 6018 kgf | 5199 kgf |
| Shovel Breakout Force | |
| 6425 kgf | 6243 kgf |
| Warranty | |
| 1 Year | 1 Year |
| AC Cabin | |
| Optional | Optional |
| GPS | |
| Standard | Standard |
| Escorts Digmax II XP | Mahindra SX IV | |
| Model | Kirloskar 74.5 HP | Mahindra 74 HP |
| Type | Proven; powerful and fuel efficient; water cooled diesel engine. CEV - IV emission noms | 4 Cylinders; Turbocharged Intercooled |
| Gross Power | 74.5 HP (55 kW) @ 2200 RPM | 74 HP (55 kW) @ 2200 RPM |
| Max Torque | 400 Nm @ 1200 RPM | 345 Nm @ 1200-1500 RPM |
| Displacement | NA | 3.5 L |
| Battery | 12V 150 Ah | 12V / 100 Ah |
| Alternator | NA | 90A |
| Escorts Digmax II XP | Mahindra SX IV | |
| Type | 4F + 4R speeds; Syncro shift reversing shuttle | Four speed ( 4 forward; 4 reverse ); Low noise Two wheel Drive ( 2 WD ); synchro shuttle transmission with electrically operated reversing shuttle and torque convertor. |
| Escorts Digmax II XP | Mahindra SX IV | |
| Type | Hydrostatic power steering in front wheel. | Front wheel; Hydraulic power steering with priority function and pressure relief valve. Emergency steering in case of power failure. |
| Working Pressure | 120 bar | NA |
| Escorts Digmax II XP | Mahindra SX IV | |
| Inner Wheels Braked - Outside Loader Bucket | NA | 4494 mm |
| Inner Wheels Braked - Outside Wheels | NA | 3091 mm |
| Inner Wheels not Braked - Outside Loader Bucket | NA | 5697 mm |
| Inner Wheels not Braked - Outside Wheels | NA | 4464 mm |
| Escorts Digmax II XP | Mahindra SX IV | |
| Service | Hydraulically actuated dual line ; self adjusting oil immersed; multi disc type on rear axle. | Hydraulically actuated; self adjusting maintenance free; oil immersed multi-disc on the rear axle operated by independent foot pedals joined together for normal operation. |
| Parking | Hand operated caliper disc brakes . | Hand operated mechanically actuated caliper type brakes . |
| Escorts Digmax II XP | Mahindra SX IV | |
| Front | 9.00 x 16 - 16 PR | 9.00 - 16 - 16 PR |
| Rear | 16.9 x 28 - 12 PR ( Industrial ) | 16.9 - 28 12 PR |
| Escorts Digmax II XP | Mahindra SX IV | |
| Forward- 1st gear | 5.3 km/hr | 5.43 km/hr |
| Reverse- 1st gear | 4.6 km/hr | 5.66 km/hr |
| Forward- 2nd gear | 8.5 km/hr | 8.84 km/hr |
| Reverse- 2nd gear | 7.0 km/hr | 9.11 km/hr |
| Forward- 3rd gear | 18.5 km/hr | 19.20 km/hr |
| Reverse- 3rd gear | Not recommended | 20.00km/hr |
| Forward- 4th gear | 36.6 km/hr | 38.37 km/hr |
| Reverse- 4th gear | Not recommended | 39.97 km/hr |
| Escorts Digmax II XP | Mahindra SX IV | |
| Type | Axial Piston Pump; Fixed flow open center two pump unloading energy efficient hydraulic system. | Oepn Center; Fixed displacement; Gear Pump |
| Maximum Pump Flow | 117.5 L/min @ 2200 RPM | 117 L/min @ 2250 RPM |
| System Pressure | 225 bar | 253 bar |
| Escorts Digmax II XP | Mahindra SX IV | |
| Rear Axle | Rear drive axle; rigidly mounted to chassis | Rigidly mounted drive axle; with outbound planetary final drives; driven by short drive shaft. |
| Front Axle | Front steer axle with 16 oscillation for maximum ground contact in an undulated condition. | Centrally pivoted; non-driven unbalanced type axle; with total oscillation of 16°C; with remote greasing facility for the main pin. |
| Escorts Digmax II XP | Mahindra SX IV | |
| Fuel Tank | 134 L | 140 L |
| Engine Coolant | 15 L | 17 L |
| Engine Oil | 11.5 L | 13.7 L |
| Hydraulic Tank | NA | 50 L |
| Hydraulic System | 80 L | 100 L |
| Transmission | 16.5 L | 19.20 L |
| Rear Axle | 17.1 L | 17.10 L |
| Escorts Digmax II XP | Mahindra SX IV | |
| Maximum Digging Depth | 4800 mm | 4959 mm |
| Reach-Ground Level to Rear Wheel Centre | 6970 mm | NA |
| Reach-Ground Level to Slew Centre | 5650 mm | 5794 mm |
| Reach at Full Height to Slew Centre | 2230 mm | 2774 mm |
| Side Reach to Centre Line of Machine | 6000 mm | 6324 mm |
| Maximum Working Height | 6300 mm | 6043 mm |
| Maximum Load Over Height | 4390 mm | 4131 mm |
| Bucket Rotation Angle | 187° | NA |
| Bucket Digging force | 6018 kgf | 5199 kgf |
| Arm Digging force | 3250 kgf | 3182 kgf |
| Maximum Lift Capacity | 1554 kg | 1449 kg |
| Standard Bucket Capacity | 0.26 m³ | 0.27 m³ |
| Standard Bucket Width | NA | NA |
| Escorts Digmax II XP | Mahindra SX IV | |
| Dump Height | 3000 mm | 2708 mm |
| Load Over Height | 3510 mm | 3253 mm |
| Pin Height | 3700 mm | NA |
| Pin Forward Reach | 430 mm | NA |
| Reach At Ground | 1570 mm | 1350 mm |
| Maximum Reach at Full Height | 1220 mm | 1115 mm |
| Max Reach Full Height Dumped | 850 mm | NA |
| Below Ground Level Dig Depth | 130 mm | NA |
| Rollback at Ground | 45° | NA |
| Dump Angle | 45° | NA |
| Shovel Breakout Force | 6425 kgf | 6243 kgf |
| Loader Arm Breakout Force | 5777 kgf | 5594 kgf |
| Maximum Payload | 1980 kg | NA |
| Escorts Digmax II XP | Mahindra SX IV | |
| Machine Weight | 8190 kg | 7430 kg |
| Overall Length | 6280 mm | NA |
| Wheelbase | 2140 mm | NA |
| Slew Centre to Rear Axle Centre | 1380 mm | NA |
| Minimum Ground Clearance | 350 mm | NA |
| Slew Ground Clearance | 590 mm | NA |
| Height of Cabin | 2880 mm | NA |
| Overall Height | 3780 mm | NA |
| Track Width-Rear | 1750 mm | NA |
| Track Width-Front | 1870 mm | NA |
| Width Over Bucket | 2380 mm | NA |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Model | |
| Kirloskar 74.5 HP | Mahindra 74 HP |
| Type | |
| Proven; powerful and fuel efficient; water cooled diesel engine. CEV - IV emission noms | 4 Cylinders; Turbocharged Intercooled |
| Gross Power | |
| 74.5 HP (55 kW) @ 2200 RPM | 74 HP (55 kW) @ 2200 RPM |
| Max Torque | |
| 400 Nm @ 1200 RPM | 345 Nm @ 1200-1500 RPM |
| Displacement | |
| NA | 3.5 L |
| Battery | |
| 12V 150 Ah | 12V / 100 Ah |
| Alternator | |
| NA | 90A |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Type | |
| 4F + 4R speeds; Syncro shift reversing shuttle | Four speed ( 4 forward; 4 reverse ); Low noise Two wheel Drive ( 2 WD ); synchro shuttle transmission with electrically operated reversing shuttle and torque convertor. |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Type | |
| Hydrostatic power steering in front wheel. | Front wheel; Hydraulic power steering with priority function and pressure relief valve. Emergency steering in case of power failure. |
| Working Pressure | |
| 120 bar | NA |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Inner Wheels Braked - Outside Loader Bucket | |
| NA | 4494 mm |
| Inner Wheels Braked - Outside Wheels | |
| NA | 3091 mm |
| Inner Wheels not Braked - Outside Loader Bucket | |
| NA | 5697 mm |
| Inner Wheels not Braked - Outside Wheels | |
| NA | 4464 mm |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Service | |
| Hydraulically actuated dual line ; self adjusting oil immersed; multi disc type on rear axle. | Hydraulically actuated; self adjusting maintenance free; oil immersed multi-disc on the rear axle operated by independent foot pedals joined together for normal operation. |
| Parking | |
| Hand operated caliper disc brakes . | Hand operated mechanically actuated caliper type brakes . |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Front | |
| 9.00 x 16 - 16 PR | 9.00 - 16 - 16 PR |
| Rear | |
| 16.9 x 28 - 12 PR ( Industrial ) | 16.9 - 28 12 PR |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Forward- 1st gear | |
| 5.3 km/hr | 5.43 km/hr |
| Reverse- 1st gear | |
| 4.6 km/hr | 5.66 km/hr |
| Forward- 2nd gear | |
| 8.5 km/hr | 8.84 km/hr |
| Reverse- 2nd gear | |
| 7.0 km/hr | 9.11 km/hr |
| Forward- 3rd gear | |
| 18.5 km/hr | 19.20 km/hr |
| Reverse- 3rd gear | |
| Not recommended | 20.00km/hr |
| Forward- 4th gear | |
| 36.6 km/hr | 38.37 km/hr |
| Reverse- 4th gear | |
| Not recommended | 39.97 km/hr |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Type | |
| Axial Piston Pump; Fixed flow open center two pump unloading energy efficient hydraulic system. | Oepn Center; Fixed displacement; Gear Pump |
| Maximum Pump Flow | |
| 117.5 L/min @ 2200 RPM | 117 L/min @ 2250 RPM |
| System Pressure | |
| 225 bar | 253 bar |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Rear Axle | |
| Rear drive axle; rigidly mounted to chassis | Rigidly mounted drive axle; with outbound planetary final drives; driven by short drive shaft. |
| Front Axle | |
| Front steer axle with 16 oscillation for maximum ground contact in an undulated condition. | Centrally pivoted; non-driven unbalanced type axle; with total oscillation of 16°C; with remote greasing facility for the main pin. |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Fuel Tank | |
| 134 L | 140 L |
| Engine Coolant | |
| 15 L | 17 L |
| Engine Oil | |
| 11.5 L | 13.7 L |
| Hydraulic Tank | |
| NA | 50 L |
| Hydraulic System | |
| 80 L | 100 L |
| Transmission | |
| 16.5 L | 19.20 L |
| Rear Axle | |
| 17.1 L | 17.10 L |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Maximum Digging Depth | |
| 4800 mm | 4959 mm |
| Reach-Ground Level to Rear Wheel Centre | |
| 6970 mm | NA |
| Reach-Ground Level to Slew Centre | |
| 5650 mm | 5794 mm |
| Reach at Full Height to Slew Centre | |
| 2230 mm | 2774 mm |
| Side Reach to Centre Line of Machine | |
| 6000 mm | 6324 mm |
| Maximum Working Height | |
| 6300 mm | 6043 mm |
| Maximum Load Over Height | |
| 4390 mm | 4131 mm |
| Bucket Rotation Angle | |
| 187° | NA |
| Bucket Digging force | |
| 6018 kgf | 5199 kgf |
| Arm Digging force | |
| 3250 kgf | 3182 kgf |
| Maximum Lift Capacity | |
| 1554 kg | 1449 kg |
| Standard Bucket Capacity | |
| 0.26 m³ | 0.27 m³ |
| Standard Bucket Width | |
| NA | NA |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Dump Height | |
| 3000 mm | 2708 mm |
| Load Over Height | |
| 3510 mm | 3253 mm |
| Pin Height | |
| 3700 mm | NA |
| Pin Forward Reach | |
| 430 mm | NA |
| Reach At Ground | |
| 1570 mm | 1350 mm |
| Maximum Reach at Full Height | |
| 1220 mm | 1115 mm |
| Max Reach Full Height Dumped | |
| 850 mm | NA |
| Below Ground Level Dig Depth | |
| 130 mm | NA |
| Rollback at Ground | |
| 45° | NA |
| Dump Angle | |
| 45° | NA |
| Shovel Breakout Force | |
| 6425 kgf | 6243 kgf |
| Loader Arm Breakout Force | |
| 5777 kgf | 5594 kgf |
| Maximum Payload | |
| 1980 kg | NA |
| Escorts Digmax II XP | Mahindra SX IV |
|---|---|
| Machine Weight | |
| 8190 kg | 7430 kg |
| Overall Length | |
| 6280 mm | NA |
| Wheelbase | |
| 2140 mm | NA |
| Slew Centre to Rear Axle Centre | |
| 1380 mm | NA |
| Minimum Ground Clearance | |
| 350 mm | NA |
| Slew Ground Clearance | |
| 590 mm | NA |
| Height of Cabin | |
| 2880 mm | NA |
| Overall Height | |
| 3780 mm | NA |
| Track Width-Rear | |
| 1750 mm | NA |
| Track Width-Front | |
| 1870 mm | NA |
| Width Over Bucket | |
| 2380 mm | NA |
Disclaimer: *All logos, trademarks, brand names, images, videos, documents, and product information displayed on DesiMachines are the property of their respective owners. DesiMachines is an independent aggregator working with OEMs, authorised dealers, channel partners, and publicly available sources. Display of any brand or content does not imply partnership or endorsement. Product details, specifications, prices, and availability are indicative and subject to change. Users should verify final details with the respective dealer or seller. DesiMachines is not liable for any inaccuracies or decisions made based on the information provided.
Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.
