    CASE 770 NX Magnum VS CASE 770 NX Backhoe Loader

    CASE 770 NX Magnum
    ₹ 33- 36 Lakhs*

    CASE 770 NX Magnum

    • Engine

      CNH 74 HP

    • Bucket

      0.30 m³

    • Shovel

      1.1 m³

    • Dig. Depth

      4700 mm

    • Dump Height

      2730 mm

    • Weight

      7700 kg
    2WD/4WD

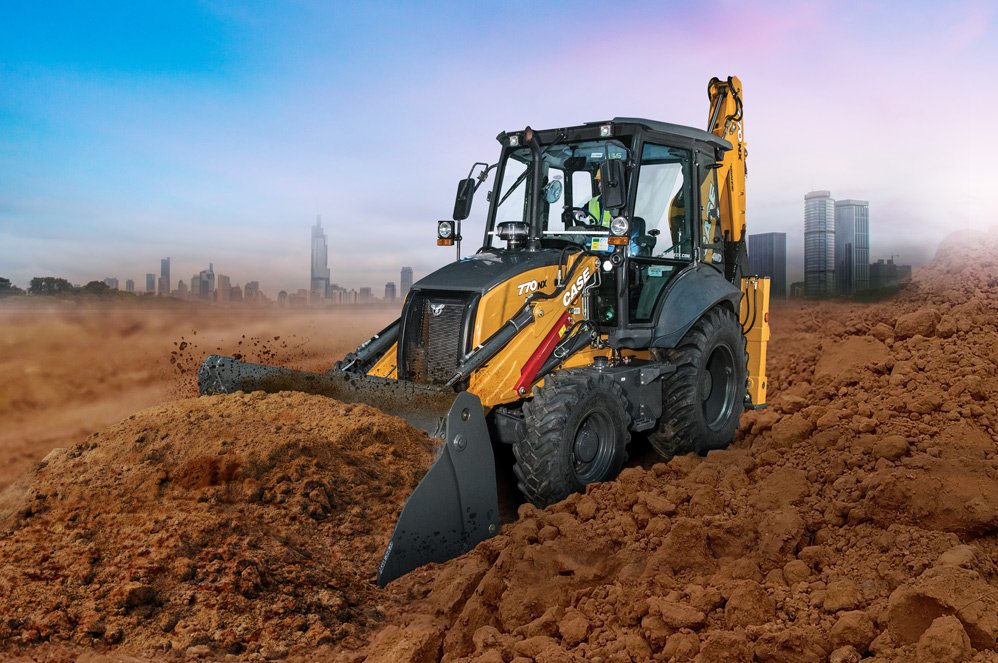

    CASE 770 NX
    ₹ 33 - 36 Lakhs*

    CASE 770 NX

    • Engine

      CNH 74 HP

    • Bucket

      0.26 m³

    • Shovel

      1.1 m³

    • Dig. Depth

      4400 mm

    • Dump Height

      2730 mm

    • Weight

      7600 kg
    2WD/4WD

    Add Equipment

    The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.

    Key Highlights CASE 770 NX MagnumCASE 770 NX
    CASE 770 NX Magnum VS CASE 770 NX Backhoe Loader
    CASE 770 Backhoe Loader
    CASE 770 NX Magnum

    ₹ 33- 36 Lakhs

    CASE 770 Price
    CASE 770 NX

    ₹ 33 - 36 Lakhs

    Particulars CASE 770 NX Magnum CASE 770 NX

    Case 770 Nx vs Case 770 Nx Magnum: Which One Should You Buy?

    Both machines use the same engine. Both dig and load well. The tables below give you all the numbers. The real question is which one is right for your work. The Case 770 Nx is a good choice if you want a simple, strong machine for normal daily work. It costs a little less to run and is easy to keep. The Case 770 Nx Magnum digs a little deeper, lifts a little more, and comes with an AC cabin as standard. It is better if you work long hours in heat or dust, or on bigger digging jobs.

    Before you buy, think about a few simple things. Is there a Case service centre near you? Can you pay the loan easily every month? Will the machine be easy to sell after some years? These things matter more than a few extra numbers. You can also see the full Case backhoe range and read our backhoe loader buying guide to help you choose.

    For full specifications, the latest on-road price and EMI options, see the dedicated CASE 770 NX price and CASE 770 NX Magnum price pages.

    CASE 770 NX CEV5

    Pros:

    • CEV-5 emission compliant
    • 74 HP CNH engine with turbocharged intercooled technology
    • Optional AC cabin
    • GPS standard
    • Multiple bucket and shovel capacities available
    • Good lifting capacity of 1417 kg
    • Decent maximum digging depth of 4400 mm

    Cons:

    • AC cabin is not standard
    • Maximum pump flow of 119 L/min which is lower compared to Magnum variant
    • Slightly less digging depth compared to Magnum variant
    • Hydraulic Tank specifications not available
    • Alternator specification not provided

    CASE 770 NX Magnum CEV5

    Pros:

    • CEV-5 emission compliant
    • AC cabin comes standard
    • GPS standard
    • Increased hydraulic pump flow of 143 L/min
    • Greater system pressure of 250 bar
    • More robust digging capabilities with a max depth of 4700 mm
    • Higher excavator max lift capacity of 1477 kg
    • Increased breakout forces for bucket and arm

    Cons:

    • Slightly heavier at 7700 Kg which might affect maneuverability
    • Even with added features, only 1 year warranty
    • Engine alternator specification is missing
    • Hydraulic tank details are not provided

    Pros:

    Cons:

    Closing Recommendation

    Both machines share the same engine and both dig and load well, so pick by the work you do. Choose the Case 770 Nx for simple, strong daily work that is easy to keep; choose the Case 770 Nx Magnum for long hours in heat or dust and bigger, deeper digging, since it has an AC cabin and lifts a little more. Also check that a Case service centre, spare parts, and trained drivers are near you, and that the machine will be easy to sell later. So match the machine to your work: Case 770 Nx for simple daily jobs, Case 770 Nx Magnum for long hours and heavy digging.

    CASE 770 NX Magnum Vs CASE 770 NX Backhoe Loader Price, Technical Specifications & Features

    Brand CASE Backhoe Loader CASE Backhoe Loader
    Type 2WD/4WD 2WD/4WD
    Price ₹ 33- 36 Lakhs ₹ 33 - 36 Lakhs
    Engine CNH 74 HP CNH 74 HP
    Bucket 0.30 m³ 0.26 m³
    Shovel 1.1 m³ 1.1 m³
    Max Digging Depth 4700 mm 4400 mm
    Max Dump Height 2730 mm 2730 mm
    Weight 7700 kg 7600 kg
    Quick Overview:

    The CASE 770 NX Magnum Backhoe Loader is a premium version designed for higher productivity, smoother operation, and better operator experience. It comes with a 74 HP engine and features advanced hydraulic modes, which enhance efficiency during heavy-duty tasks. The machine has a quiet cabin, better visibility, and smart telematics, making it suited for long working hours and continuous operations. With improved digging capability and the optional Extendahoe for added reach, it handles demanding tasks more effectively. Its sturdy build and modern design ensure durability and reduce maintenance needs. The price of 770 NX Magnum backhoe loader from CASE in India generally ranges from ₹33 to 33 lakh, making it a strong opti4on for contractors focused on performance and comfort.

    The CASE 770 NX Backhoe Loader is a modern, feature-packed machine designed for higher efficiency and smarter operations. It has a 74 HP engine with dual power modes, which lets operators switch between fuel-saving and performance modes based on job requirements. The 770 NX Backhoe Loader from CASE offers better digging depth, good fuel efficiency, and advanced telematics for real-time monitoring. Its spacious cabin, 360° visibility, and ergonomic controls improve operator comfort and safety. With features like Extendahoe and multiple work modes, it adapts well to various site conditions. The CASE 770 NX price in India generally falls within the ₹33 to 36 lakh range, making it ideal for contractors seeking technology, flexibility, and consistent performance.

    Case 770 Nx vs Case 770 Nx Magnum: Which One Should You Buy?

    Both machines use the same engine. Both dig and load well. The tables below give you all the numbers. The real question is which one is right for your work. The Case 770 Nx is a good choice if you want a simple, strong machine for normal daily work. It costs a little less to run and is easy to keep. The Case 770 Nx Magnum digs a little deeper, lifts a little more, and comes with an AC cabin as standard. It is better if you work long hours in heat or dust, or on bigger digging jobs.

    Before you buy, think about a few simple things. Is there a Case service centre near you? Can you pay the loan easily every month? Will the machine be easy to sell after some years? These things matter more than a few extra numbers. You can also see the full Case backhoe range and read our backhoe loader buying guide to help you choose.

    For full specifications, the latest on-road price and EMI options, see the dedicated CASE 770 NX price and CASE 770 NX Magnum price pages.

    CASE 770 NX CEV5

    Pros:

    • CEV-5 emission compliant
    • 74 HP CNH engine with turbocharged intercooled technology
    • Optional AC cabin
    • GPS standard
    • Multiple bucket and shovel capacities available
    • Good lifting capacity of 1417 kg
    • Decent maximum digging depth of 4400 mm

    Cons:

    • AC cabin is not standard
    • Maximum pump flow of 119 L/min which is lower compared to Magnum variant
    • Slightly less digging depth compared to Magnum variant
    • Hydraulic Tank specifications not available
    • Alternator specification not provided

    CASE 770 NX Magnum CEV5

    Pros:

    • CEV-5 emission compliant
    • AC cabin comes standard
    • GPS standard
    • Increased hydraulic pump flow of 143 L/min
    • Greater system pressure of 250 bar
    • More robust digging capabilities with a max depth of 4700 mm
    • Higher excavator max lift capacity of 1477 kg
    • Increased breakout forces for bucket and arm

    Cons:

    • Slightly heavier at 7700 Kg which might affect maneuverability
    • Even with added features, only 1 year warranty
    • Engine alternator specification is missing
    • Hydraulic tank details are not provided

    Pros:

    Cons:

    Closing Recommendation

    Both machines share the same engine and both dig and load well, so pick by the work you do. Choose the Case 770 Nx for simple, strong daily work that is easy to keep; choose the Case 770 Nx Magnum for long hours in heat or dust and bigger, deeper digging, since it has an AC cabin and lifts a little more. Also check that a Case service centre, spare parts, and trained drivers are near you, and that the machine will be easy to sell later. So match the machine to your work: Case 770 Nx for simple daily jobs, Case 770 Nx Magnum for long hours and heavy digging.

    CASE 770 NX Magnum Vs CASE 770 NX Backhoe Loader Price, Technical Specifications & Features

    CASE 770 NX Magnum CASE 770 NX
    Brand
    CASE Backhoe Loader CASE Backhoe Loader
    Type
    2WD/4WD 2WD/4WD
    Price
    ₹ 33- 36 Lakhs ₹ 33 - 36 Lakhs
    Engine
    CNH 74 HP CNH 74 HP
    Bucket
    0.30 m³ 0.26 m³
    Shovel
    1.1 m³ 1.1 m³
    Max Digging Depth
    4700 mm 4400 mm
    Max Dump Height
    2730 mm 2730 mm
    Weight
    7700 kg 7600 kg
    Quick Overview:

    The CASE 770 NX Magnum Backhoe Loader is a premium version designed for higher productivity, smoother operation, and better operator experience. It comes with a 74 HP engine and features advanced hydraulic modes, which enhance efficiency during heavy-duty tasks. The machine has a quiet cabin, better visibility, and smart telematics, making it suited for long working hours and continuous operations. With improved digging capability and the optional Extendahoe for added reach, it handles demanding tasks more effectively. Its sturdy build and modern design ensure durability and reduce maintenance needs. The price of 770 NX Magnum backhoe loader from CASE in India generally ranges from ₹33 to 33 lakh, making it a strong opti4on for contractors focused on performance and comfort.

    The CASE 770 NX Backhoe Loader is a modern, feature-packed machine designed for higher efficiency and smarter operations. It has a 74 HP engine with dual power modes, which lets operators switch between fuel-saving and performance modes based on job requirements. The 770 NX Backhoe Loader from CASE offers better digging depth, good fuel efficiency, and advanced telematics for real-time monitoring. Its spacious cabin, 360° visibility, and ergonomic controls improve operator comfort and safety. With features like Extendahoe and multiple work modes, it adapts well to various site conditions. The CASE 770 NX price in India generally falls within the ₹33 to 36 lakh range, making it ideal for contractors seeking technology, flexibility, and consistent performance.

    CASE 770 NX Magnum Vs CASE 770 NX Backhoe Loader Key Highlights

    CASE 770 NX Magnum CASE 770 NX
    Engine Make CNH Industrial (India) F28-CF28A001A*U CNH Industrial (India) F28-CF28A001A*U
    Fuel Tank 129 L 129 L
    Max Torque 375 Nm @ 1400 RPM 375 Nm @ 1400 RPM
    Max Speed 34.0 km/hr 34.0 km/hr
    Hydraulic System 96 L 96 L
    Max Working Height 5700 mm 5500 mm
    Excavator Max Lift Capacity 1477 kg 1417 kg
    Loader Load Over Height 3800 mm 3600 mm
    Overall Length 5960 mm 5800 mm
    Wheel Base 2180 mm 2180 mm
    Bucket Digging Force 5250 kgf (204°) / 6550 kgf (160°) 5000 kgf (204°) / 6050 kgf (160°)
    Shovel Breakout Force 5650 kgf 5400 kgf
    Warranty 1 Year 1 Year
    AC Cabin Standard Optional
    GPS Standard Standard

    CASE 770 NX Magnum Vs CASE 770 NX Backhoe Loader Key Highlights

    CASE 770 NX Magnum CASE 770 NX
    Engine Make
    CNH Industrial (India) F28-CF28A001A*U CNH Industrial (India) F28-CF28A001A*U
    Fuel Tank
    129 L 129 L
    Max Torque
    375 Nm @ 1400 RPM 375 Nm @ 1400 RPM
    Max Speed
    34.0 km/hr 34.0 km/hr
    Hydraulic System
    96 L 96 L
    Max Working Height
    5700 mm 5500 mm
    Excavator Max Lift Capacity
    1477 kg 1417 kg
    Loader Load Over Height
    3800 mm 3600 mm
    Overall Length
    5960 mm 5800 mm
    Wheel Base
    2180 mm 2180 mm
    Bucket Digging Force
    5250 kgf (204°) / 6550 kgf (160°) 5000 kgf (204°) / 6050 kgf (160°)
    Shovel Breakout Force
    5650 kgf 5400 kgf
    Warranty
    1 Year 1 Year
    AC Cabin
    Standard Optional
    GPS
    Standard Standard

    CASE 770 NX Magnum Vs CASE 770 NX Backhoe Loader Specifications

    Engine

    CASE 770 NX Magnum CASE 770 NX
    Model CNH 74 HP CNH 74 HP
    Type CEV Emission Stage-V, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection CEV Emission Stage-V, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection
    Gross Power 74 HP (54.6 kW) @ 2200 RPM 74 HP (54.6 kW) @ 2200 RPM
    Max Torque 375 Nm @ 1400 RPM 375 Nm @ 1400 RPM
    Displacement 2.80 L 2.80 L
    Battery 12V / 110 Ah 12V / 110 Ah
    Alternator NA NA

    Transmission

    CASE 770 NX Magnum CASE 770 NX
    Type CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission

    Steering

    CASE 770 NX Magnum CASE 770 NX
    Type Power Steering Power Steering
    Working Pressure 140 bar 140 bar

    Steering Turning Circle

    CASE 770 NX Magnum CASE 770 NX
    Inner Wheels Braked - Outside Loader Bucket 4600 mm (2WD) / 4900 (4WD) 4600 mm (2WD) / 4900 (4WD)
    Inner Wheels Braked - Outside Wheels NA NA
    Inner Wheels not Braked - Outside Loader Bucket 5500 mm (2WD) / 5600 mm (4WD) 5500 mm (2WD) / 5600 mm (4WD)
    Inner Wheels not Braked - Outside Wheels NA NA

    Brakes

    CASE 770 NX Magnum CASE 770 NX
    Service Hydraulic foot operated, 2 disc per side Hydraulic foot operated, 2 disc per side
    Parking Mechanically actuated calipper type brake pack on rear axle input shaft Mechanically actuated calipper type brake pack on rear axle input shaft

    Tyres

    CASE 770 NX Magnum CASE 770 NX
    Front 9x16 - 16 PR (2WD) / 12.5 x 18 -12 PR (4WD) 9x16 - 16PR
    Rear 16.9 x 28 - 12 PR 16.9 x 28 - 12 PR

    Speed

    CASE 770 NX Magnum CASE 770 NX
    Forward- 1st gear 5.7 km/hr 5.7 km/hr
    Reverse- 1st gear 7.0 km/hr 7.0 km/hr
    Forward- 2nd gear 9.3 km/hr 9.3 km/hr
    Reverse- 2nd gear 11.5 km/hr 11.5 km/hr
    Forward- 3rd gear 19.5 km/hr 19.5 km/hr
    Reverse- 3rd gear Not recommended Not recommended
    Forward- 4th gear 34.0 km/hr 34.0 km/hr
    Reverse- 4th gear Not Recommened Not Recommened

    Hydraulics

    CASE 770 NX Magnum CASE 770 NX
    Type Open Center Load Sensing , Variable Displacement Pump Open Center Load Sensing , Variable Displacement Pump
    Maximum Pump Flow 143 L/min 119 L/min
    System Pressure 250 bar 240 bar

    Axles

    CASE 770 NX Magnum CASE 770 NX
    Rear Axle CARRARO 28.32M CARRARO 28.32M
    Front Axle CNH PS1300 (2WD) CARARRO / NH 26.17M (4WD CNH PS1300

    Service Capacities

    CASE 770 NX Magnum CASE 770 NX
    Fuel Tank 129 L 129 L
    Engine Coolant 10 L 10 L
    Engine Oil 8.5 L 8.5 L
    Hydraulic Tank NA NA
    Hydraulic System 96 L 96 L
    Transmission 18 L (2WD) / 20 (4WD) 18 L
    Rear Axle 17.1 L 17.1 L

    Excavator Performance

    CASE 770 NX Magnum CASE 770 NX
    Maximum Digging Depth 4700 mm 4400 mm
    Reach-Ground Level to Rear Wheel Centre 7220 mm 6950 mm
    Reach-Ground Level to Slew Centre 5900 mm 5630 mm
    Reach at Full Height to Slew Centre 2400 mm 2150 mm
    Side Reach to Centre Line of Machine NA NA
    Maximum Working Height 5700 mm 5500 mm
    Maximum Load Over Height 3800 mm 3600 mm
    Bucket Rotation Angle 204° & 160° 204° & 160°
    Bucket Digging force 5250 kgf (204°) / 6550 kgf (160°) 5000 kgf (204°) / 6050 kgf (160°)
    Arm Digging force 3900 kgf 3200 kgf
    Maximum Lift Capacity 1477 kg 1417 kg
    Standard Bucket Capacity 0.30 m³ 0.26 m³
    Standard Bucket Width NA NA

    Loader Performance

    CASE 770 NX Magnum CASE 770 NX
    Dump Height 2730 mm 2730 mm
    Load Over Height 3300 mm 3300 mm
    Pin Height 3600 mm 3600 mm
    Pin Forward Reach 240 mm 240 mm
    Reach At Ground 1980 mm 1980 mm
    Maximum Reach at Full Height 1190 mm 1190 mm
    Max Reach Full Height Dumped 760 mm 760 mm
    Below Ground Level Dig Depth 110 mm 110 mm
    Rollback at Ground 33° 33°
    Dump Angle 45° 45°
    Shovel Breakout Force 5650 kgf 5400 kgf
    Loader Arm Breakout Force 5450 kgf 5250 kgf
    Maximum Payload 1925 kg 1925 kg

    Overall Dimensions And Weight

    CASE 770 NX Magnum CASE 770 NX
    Machine Weight 7700 Kg 7600 kg
    Overall Length 5960 mm 5800 mm
    Wheelbase 2180 mm 2180 mm
    Slew Centre to Rear Axle Centre NA NA
    Minimum Ground Clearance 380 mm 380 mm
    Slew Ground Clearance NA NA
    Height of Cabin 2830 mm 2830 mm
    Overall Height 3850 mm 3850 mm
    Track Width-Rear 1700 mm 1700 mm
    Track Width-Front 1880 mm 1880 mm
    Width Over Bucket 2280 mm 2280 mm

    CASE 770 NX Magnum Vs CASE 770 NX Backhoe Loader Specifications

    Engine

    CASE 770 NX Magnum CASE 770 NX
    Model
    CNH 74 HP CNH 74 HP
    Type
    CEV Emission Stage-V, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection CEV Emission Stage-V, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection
    Gross Power
    74 HP (54.6 kW) @ 2200 RPM 74 HP (54.6 kW) @ 2200 RPM
    Max Torque
    375 Nm @ 1400 RPM 375 Nm @ 1400 RPM
    Displacement
    2.80 L 2.80 L
    Battery
    12V / 110 Ah 12V / 110 Ah
    Alternator
    NA NA

    Transmission

    CASE 770 NX Magnum CASE 770 NX
    Type
    CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission

    Steering

    CASE 770 NX Magnum CASE 770 NX
    Type
    Power Steering Power Steering
    Working Pressure
    140 bar 140 bar

    Steering Turning Circle

    CASE 770 NX Magnum CASE 770 NX
    Inner Wheels Braked - Outside Loader Bucket
    4600 mm (2WD) / 4900 (4WD) 4600 mm (2WD) / 4900 (4WD)
    Inner Wheels Braked - Outside Wheels
    NA NA
    Inner Wheels not Braked - Outside Loader Bucket
    5500 mm (2WD) / 5600 mm (4WD) 5500 mm (2WD) / 5600 mm (4WD)
    Inner Wheels not Braked - Outside Wheels
    NA NA

    Brakes

    CASE 770 NX Magnum CASE 770 NX
    Service
    Hydraulic foot operated, 2 disc per side Hydraulic foot operated, 2 disc per side
    Parking
    Mechanically actuated calipper type brake pack on rear axle input shaft Mechanically actuated calipper type brake pack on rear axle input shaft

    Tyres

    CASE 770 NX Magnum CASE 770 NX
    Front
    9x16 - 16 PR (2WD) / 12.5 x 18 -12 PR (4WD) 9x16 - 16PR
    Rear
    16.9 x 28 - 12 PR 16.9 x 28 - 12 PR

    Speed

    CASE 770 NX Magnum CASE 770 NX
    Forward- 1st gear
    5.7 km/hr 5.7 km/hr
    Reverse- 1st gear
    7.0 km/hr 7.0 km/hr
    Forward- 2nd gear
    9.3 km/hr 9.3 km/hr
    Reverse- 2nd gear
    11.5 km/hr 11.5 km/hr
    Forward- 3rd gear
    19.5 km/hr 19.5 km/hr
    Reverse- 3rd gear
    Not recommended Not recommended
    Forward- 4th gear
    34.0 km/hr 34.0 km/hr
    Reverse- 4th gear
    Not Recommened Not Recommened

    Hydraulics

    CASE 770 NX Magnum CASE 770 NX
    Type
    Open Center Load Sensing , Variable Displacement Pump Open Center Load Sensing , Variable Displacement Pump
    Maximum Pump Flow
    143 L/min 119 L/min
    System Pressure
    250 bar 240 bar

    Axles

    CASE 770 NX Magnum CASE 770 NX
    Rear Axle
    CARRARO 28.32M CARRARO 28.32M
    Front Axle
    CNH PS1300 (2WD) CARARRO / NH 26.17M (4WD CNH PS1300

    Service Capacities

    CASE 770 NX Magnum CASE 770 NX
    Fuel Tank
    129 L 129 L
    Engine Coolant
    10 L 10 L
    Engine Oil
    8.5 L 8.5 L
    Hydraulic Tank
    NA NA
    Hydraulic System
    96 L 96 L
    Transmission
    18 L (2WD) / 20 (4WD) 18 L
    Rear Axle
    17.1 L 17.1 L

    Excavator Performance

    CASE 770 NX Magnum CASE 770 NX
    Maximum Digging Depth
    4700 mm 4400 mm
    Reach-Ground Level to Rear Wheel Centre
    7220 mm 6950 mm
    Reach-Ground Level to Slew Centre
    5900 mm 5630 mm
    Reach at Full Height to Slew Centre
    2400 mm 2150 mm
    Side Reach to Centre Line of Machine
    NA NA
    Maximum Working Height
    5700 mm 5500 mm
    Maximum Load Over Height
    3800 mm 3600 mm
    Bucket Rotation Angle
    204° & 160° 204° & 160°
    Bucket Digging force
    5250 kgf (204°) / 6550 kgf (160°) 5000 kgf (204°) / 6050 kgf (160°)
    Arm Digging force
    3900 kgf 3200 kgf
    Maximum Lift Capacity
    1477 kg 1417 kg
    Standard Bucket Capacity
    0.30 m³ 0.26 m³
    Standard Bucket Width
    NA NA

    Loader Performance

    CASE 770 NX Magnum CASE 770 NX
    Dump Height
    2730 mm 2730 mm
    Load Over Height
    3300 mm 3300 mm
    Pin Height
    3600 mm 3600 mm
    Pin Forward Reach
    240 mm 240 mm
    Reach At Ground
    1980 mm 1980 mm
    Maximum Reach at Full Height
    1190 mm 1190 mm
    Max Reach Full Height Dumped
    760 mm 760 mm
    Below Ground Level Dig Depth
    110 mm 110 mm
    Rollback at Ground
    33° 33°
    Dump Angle
    45° 45°
    Shovel Breakout Force
    5650 kgf 5400 kgf
    Loader Arm Breakout Force
    5450 kgf 5250 kgf
    Maximum Payload
    1925 kg 1925 kg

    Overall Dimensions And Weight

    CASE 770 NX Magnum CASE 770 NX
    Machine Weight
    7700 Kg 7600 kg
    Overall Length
    5960 mm 5800 mm
    Wheelbase
    2180 mm 2180 mm
    Slew Centre to Rear Axle Centre
    NA NA
    Minimum Ground Clearance
    380 mm 380 mm
    Slew Ground Clearance
    NA NA
    Height of Cabin
    2830 mm 2830 mm
    Overall Height
    3850 mm 3850 mm
    Track Width-Rear
    1700 mm 1700 mm
    Track Width-Front
    1880 mm 1880 mm
    Width Over Bucket
    2280 mm 2280 mm

    Popular Comparisons with CASE 770 NX Magnum

    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    E-kubota blx75
    Escorts Kubota E-Kubota BLX75
    4.5 rating
    ₹ 32 - 36 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Mahindra Earthmaster Price
    Mahindra CE Mahindra Earthmaster VX
    4.5 rating
    ₹ 29.5 Lakhs Onwards
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Mahindra Earthmaster SX On Road Price
    Mahindra CE Mahindra Earthmaster SX
    4.5 rating
    ₹ 29.5 lakh onwards*
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    CASE 851 NX
    CASE CASE 851 NX
    4.5 rating
    ₹ 34 - 37 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Manitou MBL 745 HT
    Manitou Manitou MBL 745 HT Ranger BSV
    4.5 rating
    ₹ 36-38 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    MBL 745 HT Price
    Manitou Manitou MBL 745 HT+ BS-V
    4.5 rating
    ₹ 31-33 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Manitou MBL 745 Price in India
    Manitou Manitou MBL 745 HT
    4.5 rating
    ₹ 29-32 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Escorts Digmax Super On Road Price
    Escorts Kubota Escorts Digmax Super
    4.5 rating
    ₹ 35-37 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    CAT 424 Backhoe Loader
    Caterpillar CAT 424
    4.5 rating
    ₹ 34-35 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    CASE 770 EX on Road Price
    CASE CASE 770 EX Plus
    4.5 rating
    ₹ 27-34 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    CASE 770 EX Price
    CASE CASE 770 EX
    4.5 rating
    ₹ 27 - 34 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Bobcat B900 2WD/4WD
    Bobcat Bobcat B900
    4.5 rating
    ₹ 32-34 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    ACE AX 130 Backhoe Loader Price
    ACE ACE AX 130
    4.5 rating
    ₹ 29-35 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    ACE AX 124 Price
    ACE ACE AX 124
    4.5 rating
    ₹ 29-35 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    JCB 4DX Price
    JCB JCB 4DX
    4.5 rating
    ₹ 36-40 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    JCB 3DX 74 HP Price
    JCB JCB 3DX Xtra
    4.5 rating
    ₹ 35-39 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    JCB 3DX Super
    JCB JCB 3DX Super
    4.5 rating
    ₹ 35 - 39 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    JCB 3DX Plus 74 HP Price
    JCB JCB 3DX Plus
    4.5 rating
    ₹ 35-39 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    JCB 3DX Price
    JCB JCB 3DX
    4.5 rating
    ₹ 30-32 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Tata Hitachi Shinrai Prime 2WD/4WD
    Tata Hitachi Tata Hitachi Shinrai Prime
    4.5 rating
    ₹ 33-35 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Bull HD 76 Price
    Bull Machines Bull HD76 BS4 Heavy Duty
    4.5 rating
    ₹ 30-35 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Bull SD76 Price in India
    Bull Machines Bull SD76 BS5 Super Smart
    4.5 rating
    ₹ 30-36 Lakhs
    Compare
    VS
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Bull SD76 Price
    Bull Machines Bull SD76 BS4 Champion
    4.5 rating
    ₹ 30-34 Lakhs
    Compare

    Popular Comparisons with CASE 770 NX

    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    E-kubota blx75
    Escorts Kubota E-Kubota BLX75
    4.5 rating
    ₹ 32 - 36 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    CASE 770 Backhoe Loader
    CASE CASE 770 NX Magnum
    4.5 rating
    ₹ 33- 36 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Mahindra Earthmaster Price
    Mahindra CE Mahindra Earthmaster VX
    4.5 rating
    ₹ 29.5 Lakhs Onwards
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Mahindra Earthmaster SX On Road Price
    Mahindra CE Mahindra Earthmaster SX
    4.5 rating
    ₹ 29.5 lakh onwards*
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    CASE 851 NX
    CASE CASE 851 NX
    4.5 rating
    ₹ 34 - 37 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Manitou MBL 745 HT
    Manitou Manitou MBL 745 HT Ranger BSV
    4.5 rating
    ₹ 36-38 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    MBL 745 HT Price
    Manitou Manitou MBL 745 HT+ BS-V
    4.5 rating
    ₹ 31-33 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Manitou MBL 745 Price in India
    Manitou Manitou MBL 745 HT
    4.5 rating
    ₹ 29-32 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Escorts Digmax Super On Road Price
    Escorts Kubota Escorts Digmax Super
    4.5 rating
    ₹ 35-37 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    CAT 424 Backhoe Loader
    Caterpillar CAT 424
    4.5 rating
    ₹ 34-35 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    CASE 770 EX on Road Price
    CASE CASE 770 EX Plus
    4.5 rating
    ₹ 27-34 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    CASE 770 EX Price
    CASE CASE 770 EX
    4.5 rating
    ₹ 27 - 34 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Bobcat B900 2WD/4WD
    Bobcat Bobcat B900
    4.5 rating
    ₹ 32-34 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    ACE AX 130 Backhoe Loader Price
    ACE ACE AX 130
    4.5 rating
    ₹ 29-35 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    ACE AX 124 Price
    ACE ACE AX 124
    4.5 rating
    ₹ 29-35 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    JCB 4DX Price
    JCB JCB 4DX
    4.5 rating
    ₹ 36-40 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    JCB 3DX 74 HP Price
    JCB JCB 3DX Xtra
    4.5 rating
    ₹ 35-39 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    JCB 3DX Super
    JCB JCB 3DX Super
    4.5 rating
    ₹ 35 - 39 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    JCB 3DX Plus 74 HP Price
    JCB JCB 3DX Plus
    4.5 rating
    ₹ 35-39 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    JCB 3DX Price
    JCB JCB 3DX
    4.5 rating
    ₹ 30-32 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Tata Hitachi Shinrai Prime 2WD/4WD
    Tata Hitachi Tata Hitachi Shinrai Prime
    4.5 rating
    ₹ 33-35 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Bull HD 76 Price
    Bull Machines Bull HD76 BS4 Heavy Duty
    4.5 rating
    ₹ 30-35 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Bull SD76 Price in India
    Bull Machines Bull SD76 BS5 Super Smart
    4.5 rating
    ₹ 30-36 Lakhs
    Compare
    VS
    CASE 770 Price
    CASE CASE 770 NX
    4.5 rating
    ₹ 33 - 36 Lakhs
    Bull SD76 Price
    Bull Machines Bull SD76 BS4 Champion
    4.5 rating
    ₹ 30-34 Lakhs
    Compare

    Frequently Asked Question

    Ans.

    Both are easy to sell because Case backhoes are well known in India. The normal 770 Nx sells fast because more people buy it and it costs less. The Magnum sells for a bit more because it has the AC cabin and better digging. If you want the quickest sale, the 770 Nx is the safe choice. If you want a slightly higher sale price, the Magnum helps.

    Ans.

    Yes. Both machines share the same engine and most of the same parts. So parts are easy to find at any Case dealer. Drivers can run both without new training, because they work almost the same way. This means less waiting for repair and no trouble finding a driver. It helps small owners and fleet owners both.

    Ans.

    Yes, if you work long hours in heat or dust. The Magnum comes with the AC cabin as standard. A cool cabin keeps the driver fresh, so he works longer and makes fewer mistakes. On the normal 770 Nx the AC cabin is an extra option, so ask the dealer about it. If you work short hours in cool weather, you may not need it.

    Ans.

    Pick the 770 Nx for normal work like laying pipe, small roads, and loading in towns and yards. Pick the Magnum for harder digging, deeper trenches, and long daily work on big sites. The Magnum digs deeper and lifts a little more, so it finishes heavy jobs faster. For light or mixed work, the normal 770 Nx is enough.

    Ans.

    No, not much more. Both machines use the same engine, so fuel use is almost the same. The Magnum has stronger hydraulics, so it may use a little more fuel on very heavy digging. For normal work the running cost is close. Choose based on the work you do, not on a small fuel difference.

    Ans.

    Yes, very easily. Banks, finance companies, and Case dealers all give loans for these machines. How much you pay each month depends on your down payment and your loan record. Ask two or three lenders before you decide. Do not take the first EMI offer you get.

    CASE 770 NX Magnum Vs CASE 770 NX - Compare Price & Availability Across 600+ Locations in India

    Compare CASE 770 NX Magnum Vs CASE 770 NX price and availability across all major cities in India including Mumbai, Pune, Kolkata, Hyderabad, Chennai, Bengaluru, Delhi, Ahmedabad, Indore, Jaipur, Guwahati, and 600+ more locations.

    Maharashtra
    26 cities

    • Mumbai

    • Pune

    • Nagpur

    • Navi Mumbai

    • Thane

    • Nashik

    • Aurangabad (Chhatrapati Sambhajinagar)

    • Solapur

    • Kolhapur

    • Amravati

    • Chandrapur

    • Yavatmal

    • Latur

    • Dhule

    • Ahmednagar

    • Jalgaon

    • Raigad

    • Beed

    • Wardha

    • Palghar

    • Sangli

    • Ratnagiri

    • Satara

    • Nanded

    • Akola

    • Buldhana

    Gujarat
    21 cities

    • Ahmedabad

    • Gandhinagar

    • Surat

    • Vadodara

    • Rajkot

    • Bhavnagar

    • Jamnagar

    • Mundra

    • Kutch

    • Vapi

    • Anand

    • Mehsana

    • Morbi

    • Surendranagar

    • Amreli

    • Bharuch

    • Navsari

    • Dahej

    • Alang

    • Dholera

    • Gandhidham

    Goa
    5 cities

    • Panaji

    • Vasco da Gama

    • Margao

    • Calangute

    • Mormugao

    Disclaimer: *All logos, trademarks, brand names, images, videos, documents, and product information displayed on DesiMachines are the property of their respective owners. DesiMachines is an independent aggregator working with OEMs, authorised dealers, channel partners, and publicly available sources. Display of any brand or content does not imply partnership or endorsement. Product details, specifications, prices, and availability are indicative and subject to change. Users should verify final details with the respective dealer or seller. DesiMachines is not liable for any inaccuracies or decisions made based on the information provided.

    !

    Let's get started

    Disclaimer

    Desi Machines is a platform where you can see and compare construction equipment. It showcases images, brochures, features, technical specifications, brand details & dealer information. All these are taken from respective brand websites, brochures, and other public resources. We do not claim ownership of these materials and strive to ensure their accuracy. However, the disparity may happen and we advise users to verify directly with respective brands and dealers. Desi Machines is not liable for any inaccuracies or reliance on the information provided. Use of this website is at your own discretion.

    Compare
