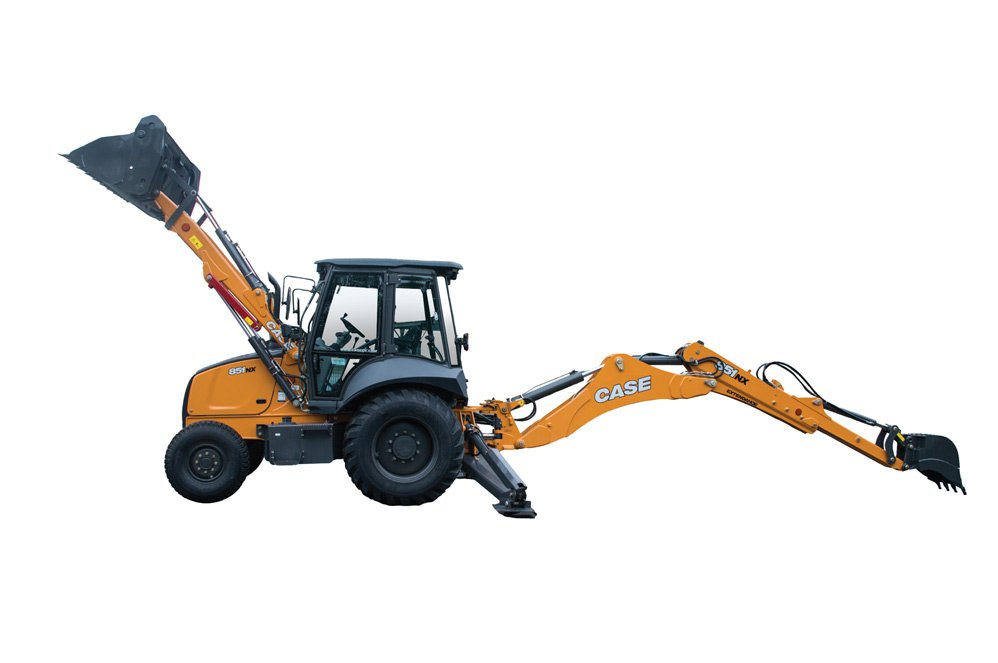

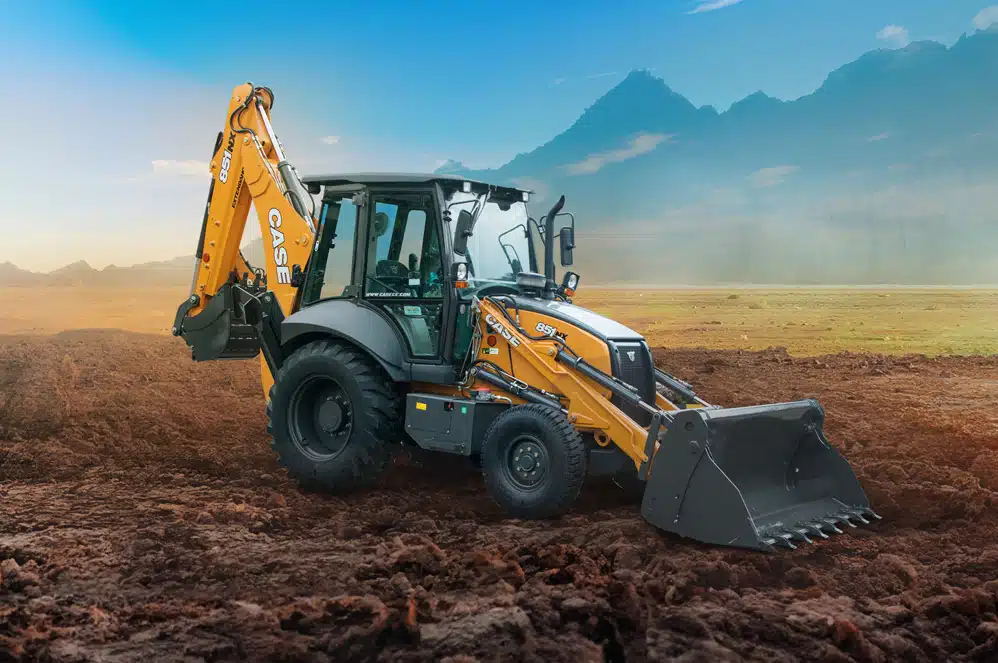

CASE 851 NX CEV5 Backhoe Loader

The CASE 851 NX backhoe loader is a powerful 74 HP machine built for tough and demanding construction applications. With a 0.36 m³ bucket, 1.1 m³ shovel, and a 4700 mm digging depth, it delivers strong breakout force and smooth operational efficiency for excavation and loading tasks. Its 7800 kg operating weight and 2720 mm dump height ensure stable, productive cycles. Designed for cleaner CEV Stage V operation and enhanced operator comfort, the 851 NX is a reliable heavy-duty performer for modern job sites.

  • Engine

    CNH 74 HP

  • featIcon2 (1) alt
    Bucket

    0.36 m³

  • shovel-icon1 alt
    Shovel

    1.1 m³

  • Digging Depth

    4700 mm

  • dumping height loader
    Dump Height

    2720 mm

  • icon alt1
    Weight

    7800 kg

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of CASE 851 NX CEV5

Engine Make

CNH Industrial (India) F28-CF28A001A*U

Fuel Tank

129 L

Max Torque

375 Nm @ 1400 RPM

Max Speed

34.0 km/hr

Hydraulic System

143 L/min

Max Working Height

5700 mm

Excavator Max Lift Capacity

1477 kg

Loader Load Over Height

3300 mm

Overall Length

6060 mm

Wheel Base

2180 mm

Bucket Digging Force

5000 kgf (204°) / 6550 kgf (160°)

Shovel Break Out Force

5000 kgf

Warranty

1 Year

air-conditioner-alt
AC Cabin

Optional

GPS Tracking
GPS

Standard

Features of CASE 851 NX CEV5

Reliable Engine with Fuel Efficiency

  • Advanced CEV Stage-5 compliant F28 engine with a cleaner environment.

  • Service-friendly, compact design ensures lower maintenance costs.

  • Reliable performance in extreme temperatures up to 20°C.

  • Reinforced with robust, robotically welded structures, sturdy axles, pins, and bushes.

  • Fixed metallic and flexible rubber hoses

  • New stabilizer wear pad design for improved performance.

  • Equipped with an advanced electrical system and a reliable harness.

  • Advanced DPF and sensors for optimized efficiency.

  • New ECO mode, auto idle, and auto shutdown enhance operational efficiency.

  • Engine protection shutdown safeguards the engine in all conditions.

Legacy of Innovation & Performance

  • CNH Industrial F28 engine compliant with CEV Stage-5.

  • 180+ years of legacy, delivering breakthrough technology.

  • 10% better fuel efficiency with three working modes and external EGR technology.

  • Performs at extreme low ambient temperatures up to -20°C.

  • Styled boom for both on-ground performance and high-body truck applications.

  • Improved transport height and work visibility.

  • Advanced boom geometry for superior protection of hoses.

  • Electromagnetic compliance and immunity compatibility.

Comfortable Operator Station

  • Spacious cabin with near 360° visibility, improved ergonomics, and a new color display.

  • Electronic throttle knob, 12V power socket, side shift lock, and robust switches.

  • Large split buddy seat with lockable storage.

  • Improved seat with armrest.

  • New radio system with Bluetooth, hands-free phone connectivity, and LED work lamps.

  • A quieter workspace with reduced noise levels and a cushioned, resized steering wheel.

Backhoe Productivity & Strong Arm Design

  • New electro-hydraulic variable displacement pump.

  • Versatile operating modes: ECO, STD and POWER.

  • Standard lifting hook for material handling like pipe laying and towing.

  • Over 30 attachment options to meet operational needs.

  • Improved visibility, tipping, and loading height.

  • Simplified serviceability with fewer pins and bushes, reducing maintenance time and costs.

  • Wide range of bucket options from 0.08 to 0.30 m³. .

Loader Power with Bucket Options

  • Dual modes for efficient roading and loading.

  • Ergonomically positioned FNR lever for enhanced maneuverability and productivity.

  • Enhanced fill factor with a spill-proof bucket.

  • Over 35 attachment options for increased versatility

  • 1.0 m bottom dump bucket.

  • 1.1 m³ HDB (4m high dump bucket)

Smart Design with Enhanced Safety

  • Field-ready kit for seamless cold cranking.

  • Enhanced boom and swing tower structure.

  • Redesigned engine compartment and hood.

  • Integrated fuel tank lock.

  • Rugged fuel level sensor.

  • Advanced braking technology

  • Smart audio-visual warning systems.

  • Engine protection shutdown for low downtime and low repair costs.

  • New cut-off switch in a secured and dust-free battery compartment.

Are you interested in buying CASE 851 NX CEV5 Backhoe Loader

    Note: Uncheck if you're not interested in finance or insurance deals.

    Specifications of CASE 851 NX CEV5

    ENGINE

    • Model

      CNH Industrial (India) F28-CF28A001A*U

    • Type

      CEV Emission Stage-V, 4 Cylinders, Turbocharged Intercooled, Electronic, Common Rail Direct Injection

    • Gross Power

      74 HP (54.6 kW) @ 2200 RPM

    • Max Torque

      375 Nm @ 1400 RPM

    • Displacement

      2.80 L

    • Battery

      12V / 110 Ah

    • Alternator

      NA

    TRANSMISSION

    • Type

      CARRARO 2WD/4WD TLB1, 4F-4R Power Shuttle Synchromesh Transmission

    STEERING

    • Type

      Power Steering

    • Working Pressure

      140 bar

    STEERING TURNING CIRCLE

    • Inner Wheels Braked - Outside Loader Bucket

      4600 mm (2WD) / 4900 mm (4WD)

    • Inner Wheels Braked - Outside Wheels

      NA

    • Inner Wheels not Braked - Outside Loader Bucket

      5500 mm (2WD) / 5600 mm (4WD)

    • Inner Wheels not Braked -Outside Wheels

      NA

    BRAKES

    • Service

      "Hydraulic foot operated, 2 disc per side "

    • Parking

      Mechanically actuated calipper type brake pack on rear axle input shaft

    TYRES

    • Front

      9x16 - 16PR (2WD) / 12.5x18 - 12PR (4WD)

    • Rear

      16.9 x 28 - 12 PR

    SPEED

    • Forward- 1st gear

      5.7 km/hr

    • Reverse- 1st gear

      7.0 km/hr

    • Forward- 2nd Gear

      9.3 km/hr

    • Reverse- 2nd Gear

      11.5 km/hr

    • Forward- 3rd gear

      19.5 km/hr

    • Reverse- 3rd gear

      Not Recommended

    • Forward- 4th gear

      34.0 km/hr

    • Reverse- 4th gear

      Not Recommended

    HYDRAULICS

    • Type

      Open Center Load Sensing, Variable Displacement Pump

    • Maximum Pump Flow

      143 L/min

    • System Pressure

      240 bar

    AXLES

    • Rear Axle

      CARRARO 28.32M

    • Front Axle

      CNH PS1300 (2WD) / NH 26.17M (4WD)

    SERVICE CAPACITIES

    • Fuel Tank

      129 L

    • Engine Coolant

      10 L

    • Engine Oil

      8.5 L

    • Hydraulic Tank

      NA

    • Hydraulic System

      96 L

    • Transmission

      18 L (2WD) / 20 L (4WD)

    • Rear Axle

      17.1 L

    EXCAVATOR PERFORMANCE

    • Maximum Digging Depth

      4700 mm

    • Reach-Ground Level to Rear Wheel Centre

      5900 mm

    • Reach-Ground Level to Slew Centre

      7220 mm

    • Reach at Full Height to Slew Centre

      2400 mm

    • Side Reach to Centre Line of Machine

      NA

    • Maximum Working Height

      5700 mm

    • Maximum Load Over Height

      3800 mm

    • Bucket Rotation Angle

      204° & 160°

    • Bucket Digging force

      5000 kgf (204°) / 6550 kgf (160°)

    • Arm Digging force

      3900 kgf

    • Maximum Lift Capacity

      1477 kg

    • Standard Bucket Capacity

      0.36 / 0.40 m³

    • Standard Bucket Width

      NA

    LOADER PERFORMANCE

    • Dump Height

      2720 mm

    • Load Over Height

      3300 mm

    • Pin Height

      3600 mm

    • Pin Forward ReachC

      240 mm

    • Reach at Ground

      1980 mm

    • Maximum Reach at Full Height

      1190 mm

    • Maximum Reach at Full Height - Bucket Dumped

      760 mm

    • Below Ground Level Dig Depth

      110 mm

    • Rollback at Ground

      33°

    • Dump Angle

      45°

    • Shovel Breakout Force

      5000 kgf

    • Loader Arm Breakout Force

      5250 kgf

    • Maximum Payload

      2050 kg

    • Standard Shovel Capacity

      1.1 m³

    OVERALL DIMENSIONS & WEIGHT

    • Machine Weight

      7800 kg

    • Overall Length

      6060 mm

    • Wheelbase

      2180 mm

    • Slew Centre to Rear Axle Centre

      NA

    • Minimum Ground Clearance

      380 mm

    • Slew Ground Clearance

      NA

    • Height of Cabin

      2830 mm

    • Overall Height

      3850 mm

    • Track width - Rear

      1700 mm

    • Track width - Front

      1880 mm

    • Width Over Bucket

      2280 mm

    Common Questions

    FAQs about CASE 851 NX CEV5

    What is the CASE 851 NX backhoe loader price in India?

    The CASE 851 NX backhoe loader price in India ranges between ₹ 34 and 37 lakhs. However, the on-road price may vary depending on the location, dealer, taxes, and additional features.

    Where can I buy CASE 851 NX backhoe loader in India?

    You can buy the CASE 851NX backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

    Does the CASE 851 NX backhoe loader come with financing and insurance options?

    Yes, the CASE 851 NX backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    What is the mileage of CASE 851 NX backhoe loader?

    The mileage of the CASE 851 NX backhoe loader typically ranges between 4 to 6 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

    What is the engine power of CASE 851 NX backhoe loader?

    The CASE 851 NX backhoe loader is powered by a CNH Industrial (India) F28-CF28A001A*U (BS-V) diesel engine, delivering 74 HP (54.6 kW) @ 2200 RPM.

    What is the weight of CASE 851 NX backhoe loader?

    The weight of the CASE 851 NX backhoe loader is approximately 7800 kg. The weight may vary slightly depending on specific configurations and attachments.

    What is the fuel tank capacity of the CASE 851 NX backhoe loader?

    The CASE 851 NX backhoe loader has a 129 litres diesel fuel tank, providing extended operation time without frequent refuelling.

    What is the maximum digging depth of CASE 851 NX backhoe loader?

    The CASE 851 NX backhoe loader has a maximum digging depth of 4700 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    What is the loader bucket capacity of the CASE 851 NX?

    The loader bucket capacity of the CASE 851 NX is 1.1 cubic meters (m³).

    What is the backhoe bucket capacity of the CASE 851 NX?

    The backhoe bucket capacity of the CASE 851 NX is 0.36 / 0.40 cubic meters (m³).

    What is the warranty period of CASE 851 NX backhoe loader?

    The CASE 851 NX backhoe loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    How many gears are available in CASE 851 NX backhoe loader?

    The CASE 851 NX backhoe loader features a synchro shuttle transmission with a synchronized gearbox, offering 4 forward and 4 reverse speeds

    Where can I find spare parts for the CASE 851 NX backhoe loader?

    You can find genuine spare parts for the CASE 851 NX backhoe loader at authorized CASE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.
