A concrete pump moves fresh concrete from the mixer to exactly where it needs to go: up 30 floors, across a raft foundation, or into a congested column cage a wheelbarrow could never reach. On any site pouring more than a few cubic metres a day, the pump is what keeps the concrete moving fast enough to place it before it starts to set. Get the pump wrong and your pour stalls; get it right and a slab that once took a day goes down in a few hours.

This guide covers how concrete pumps actually work, the main types you’ll deal with in India, and how to match pump capacity to your project, with the models and brands DesiMachines lists so you can move from understanding to a quote.

What is a concrete pump and how does it work?

A concrete pump is a machine that pushes liquid concrete through a steel or rubber pipeline under pressure. Instead of carrying concrete by wheelbarrow, crane bucket, or chute, you pump it continuously. The 66 stationary pumps listed in India on DesiMachines are rated from 27 cubic metres per hour (m³/hr) on the Schwing Stetter BP 250 HDE to 116 m³/hr on the Schwing Stetter SP 8800, and both of those are theoretical maximums.

The heart of nearly every modern pump is a twin-cylinder hydraulic system; the Wikipedia article on concrete pumps notes that hydraulically driven double-piston pumps, powered by a diesel or electric motor, are now the dominant design. Two pistons work in opposite strokes: as one cylinder draws concrete in from the hopper, the other pushes its charge out into the pipeline. A valve (the S-valve, in most designs) switches back and forth to keep the flow going in one direction. The result is a near-continuous stream of concrete delivered under steady pressure.

That pressure is what lets a pump beat gravity and distance. A powerful pump can push concrete vertically to the top of a high-rise or horizontally across hundreds of metres of pipeline, placing it accurately, with less labour and less wastage than any manual method. On a large raft or a tall structure, that isn’t a convenience. It’s the only practical way to pour. How high a single pump normally lifts concrete, and what a building needs above that, is covered in the guide to concreting and lifting equipment for high-rise buildings.

Types of concrete pumps

Three families cover Indian construction, from small builder sites to major infrastructure pours.

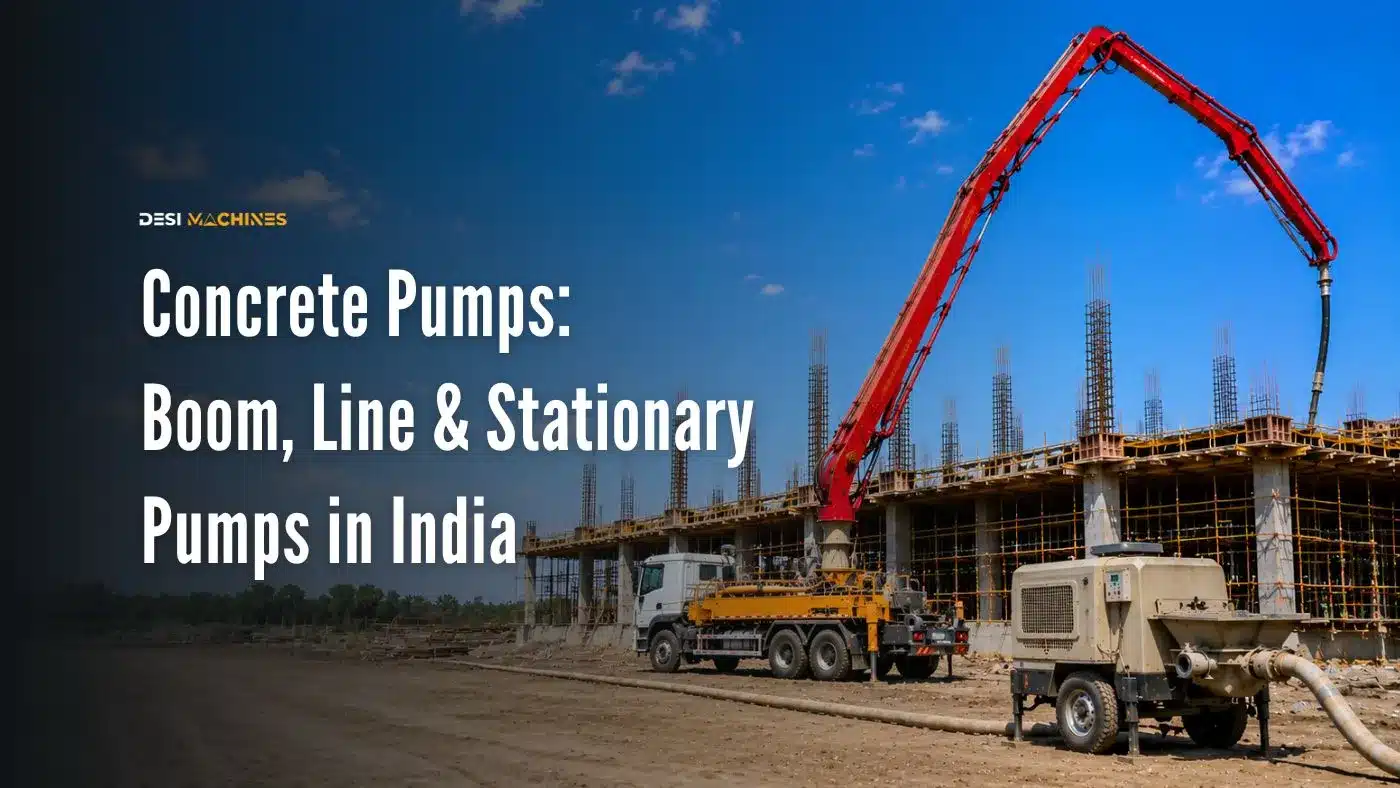

1. Boom pumps (truck-mounted)

A boom pump mounts the pump and a folding robotic arm, the placing boom, on a truck. The boom swings the delivery pipe directly over the pour and places concrete precisely, with no manual pipe-laying. One operator controls it by remote. What that remote actually carries, and why a 10 metre cable remote is the normal fitment on the stationary pumps sold here, is set out in the concrete pump remote control guide.

Boom pumps are the choice for high-volume, high-reach work: high-rise slabs, large foundations, bridges, and metro decks. Every stage of a metro job that needs concrete, from the piles to the station slabs, is listed in the guide to the metro construction process, step by step. They set up fast, pour fast, and move to the next job. The trade-off is cost and the space the truck needs to deploy its outriggers. DesiMachines lists stationary pumps only, so the boom option is covered in the pump truck guide linked further down.

2. Line pumps (stationary / trailer pumps)

A line pump, also called a stationary or trailer pump, is the pump unit on its own, mounted on a trailer or skid, with no boom. Concrete travels through a hose or steel pipeline that the crew lays out by hand to wherever it’s needed.

Line pumps are more affordable, more flexible on tight or oddly shaped sites, and ideal for ground-level slabs, footings, swimming pools, and smaller structural work. The smallest of them, rated 27 to 40 m³/hr, are what buyers call a mini concrete pump, and that guide sets out their sizes, pressure and price bands. They pump slower than boom pumps and need labour to set up and move the line, but for many builders and contractors they are the workhorse: the machine that pays for itself on steady mid-size work.

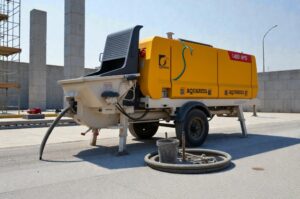

Trailer-mounted stationary concrete pump with its hopper at the rear and delivery hose coiled on site, the line pump type used on most Indian builder jobs

3. Self-loading and combination units

Some Indian sites use pumps paired with, or built into, mixing equipment for smaller or remote pours. Where a full transit mixer and separate pump aren’t justified, a combined setup keeps concrete moving on modest jobs. For the mixing side of the equation, the concrete mixer types guide covers transit mixers, SLCMs, and where each fits.

Boom pump vs line pump: which one?

This is the real decision for most buyers. It comes down to volume, reach, and site.

  • Pouring high volumes at height or over distance, such as high-rise slabs, big foundations and bridges: boom pump.
  • Pouring at ground level, on tight sites, or on a tighter budget, such as footings, small slabs, pools and structural infill: line pump.
  • Remote or low-volume work where a full boom truck can’t reach or isn’t justified: line pump with laid pipeline, or a combination unit.

A quick rule from site: if you’re regularly pouring above the third or fourth floor at pace, a boom pump pays for itself in labour and time. Below that, or on unpredictable sites, a line pump’s flexibility usually wins. Every pump listed on DesiMachines is a line pump, and you can compare stationary concrete pumps side by side on output and pressure.

Matching pump capacity to your project

Output is rated in cubic metres per hour, but the headline number is a theoretical maximum. Real-world output is well below it once you account for pipeline friction, pauses between mixer loads, and pour height. Size the pump to the concrete supply, not the other way round: a pump that outruns your mixers just sits idle. Whether that supply is ready-mix or batched on site is weighed in RMC vs site-mix concrete.

Here is how the 66 stationary pumps listed on DesiMachines spread by the maximum theoretical output each maker publishes (the higher, rod-side figure where a pump has two modes). Real output on site is well below these ratings, so read them as classes, not promises:

Stationary concrete pumps listed on DesiMachines by maximum theoretical output (catalogue figures, November 2026)
Output class Pumps listed Where it usually fits Examples
27 to 40 m³/hr 17 Houses and small buildings: slabs, footings, columns Schwing Stetter BP 250 HDE (27 m³/hr), AJAX ASP 3009 (30 m³/hr), Schwing Stetter SP 1200 E (38 m³/hr)
41 to 60 m³/hr 21 Mid-size residential and commercial structures Schwing Stetter SP 1200 D (45 m³/hr), CONMAT SCP 5000 (49 m³/hr), Putzmeister BSA 1406 E eSmart (57 m³/hr)
61 to 80 m³/hr 20 Larger structures and long, continuous pours Schwing Stetter SP 1807 (72 m³/hr), Putzmeister BSA 1407 HD eSmart (72 m³/hr), CONMAT SCP 7500 (72 m³/hr)
Above 80 m³/hr 8 Big rafts, infrastructure and contractors running several mixer lines Putzmeister BSA 1410 D (95 m³/hr), Putzmeister BSA 2109 HD (95 m³/hr), Schwing Stetter SP 8800 (116 m³/hr)

For high-rise work, pressure matters as much as output. Either use a boom pump with its boom length matched to building height, or a high-pressure stationary pump pushing up a fixed pipeline: the Schwing Stetter SP 4800, for example, is rated at 156 bar on the rod side and 243 bar in its piston-side, high-pressure mode. How pumps sit alongside cranes and hoists on tall jobs is laid out on the building construction page.

Match the model to your peak pour rate and reach. The rate and the reach are set by two separate specifications that do not rise together: see concrete pump output and pressure explained for the m³/hr and bar figures published across the stationary pumps on sale in India.

Concrete pump brands in India

Six brands make up the 66 stationary pumps listed on DesiMachines. Schwing Stetter has the widest range at 26 models, from the 27 m³/hr BP 250 HDE to the 116 m³/hr SP 8800, followed by Aquarius (15), Putzmeister (10), Venus (8), AJAX (5) and CONMAT (2). Each has its own dealer and service reach, which matters as much as the spec sheet, because a pump down for want of a spare stops the whole pour.

Browse brand-wise ranges for Schwing Stetter, Putzmeister, Aquarius, Venus, AJAX Engg and CONMAT, or read the wider concrete equipment brands guide for how the makers compare on range and after-sales.

Buying, financing and running a concrete pump

A concrete pump is a serious capital purchase, and the economics turn on utilisation. A pump that pours 20 days a month earns; one that sits between jobs bleeds EMIs. Before buying, be honest about your pour pipeline.

Equipment finance makes ownership reachable. Loans from SBI, HDFC Bank, and other lenders are laid out on the construction equipment finance page, and cover for the machine is worth comparing on the equipment insurance pages. On the ground, wear parts decide running cost. The S-valve, wear plates and delivery pipes take a beating from abrasive concrete, so factor spares and cleaning discipline into the budget, not just the sticker price. Each of those parts, and the rest of the machine, is named and sized in the guide to concrete pump parts and components.

To move from research to a real quote, shortlist concrete pumps by output and pressure, then ask the dealer for a dated quote on two or three of them. For the full placement picture, mixing and pumping together, the concrete equipment guide ties it up.

Pouring high up or across a big raft foundation? A truck-mounted concrete pump truck (boom pump) does the reaching for you: read when to hire one versus owning a line pump.

Not every buyer starts with a new machine. The used concrete pump buying guide covers what to check on a second-hand stationary pump, how to read its hours, and how to price it against the bands above.

Comparing two pumps on the spec sheet? The engine rating is the figure most often misread, because power on a pump buys pressure rather than volume. Our guide to concrete pump engine power sets out the published HP and kW figures class by class.

Final specifications, features, and prices should always be confirmed with the official OEM or dealer.
