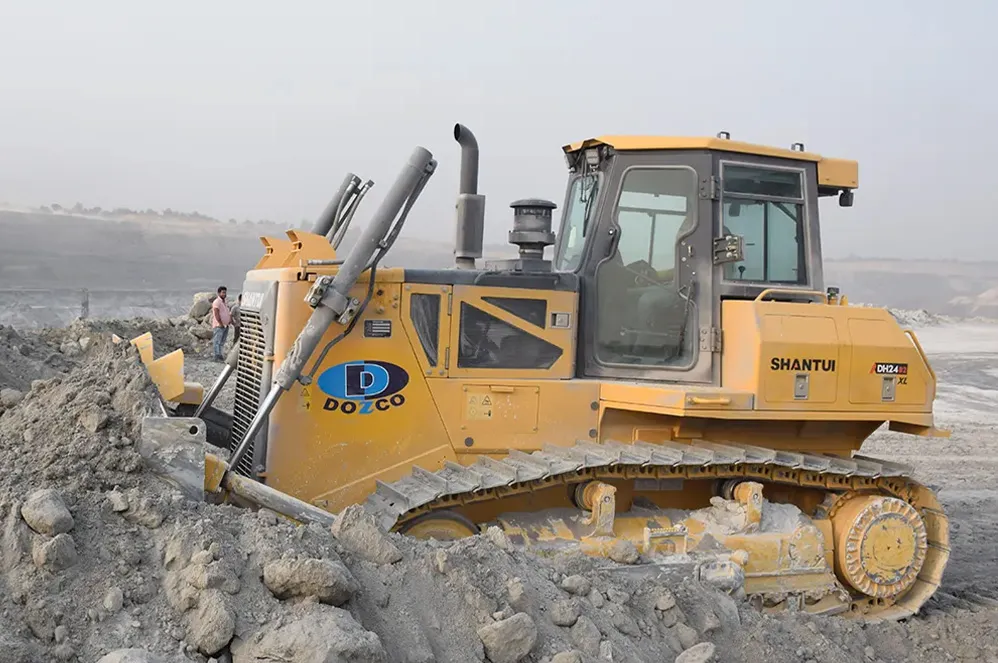

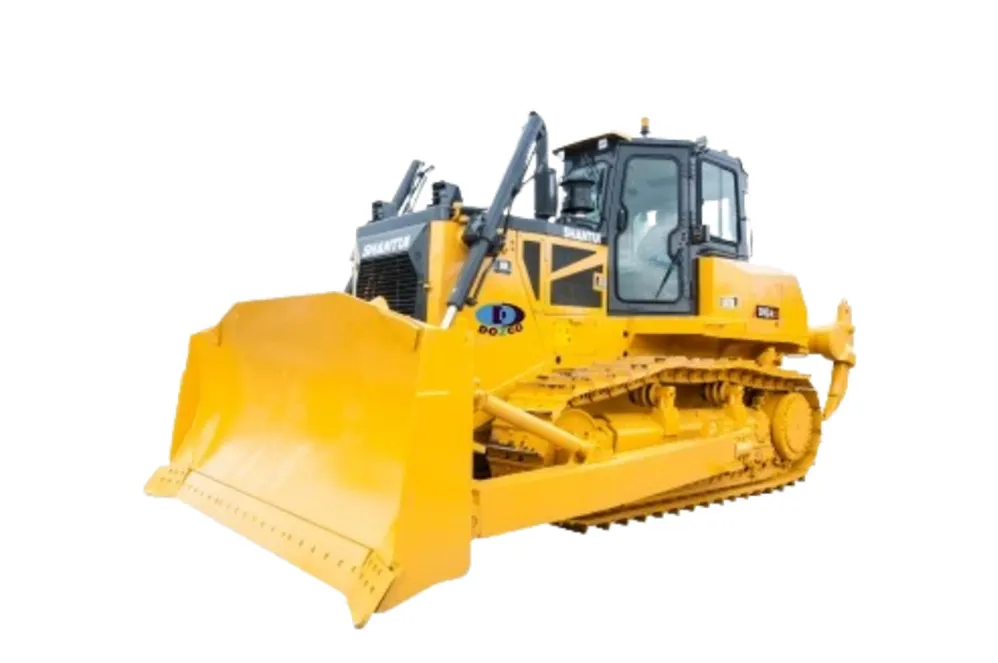

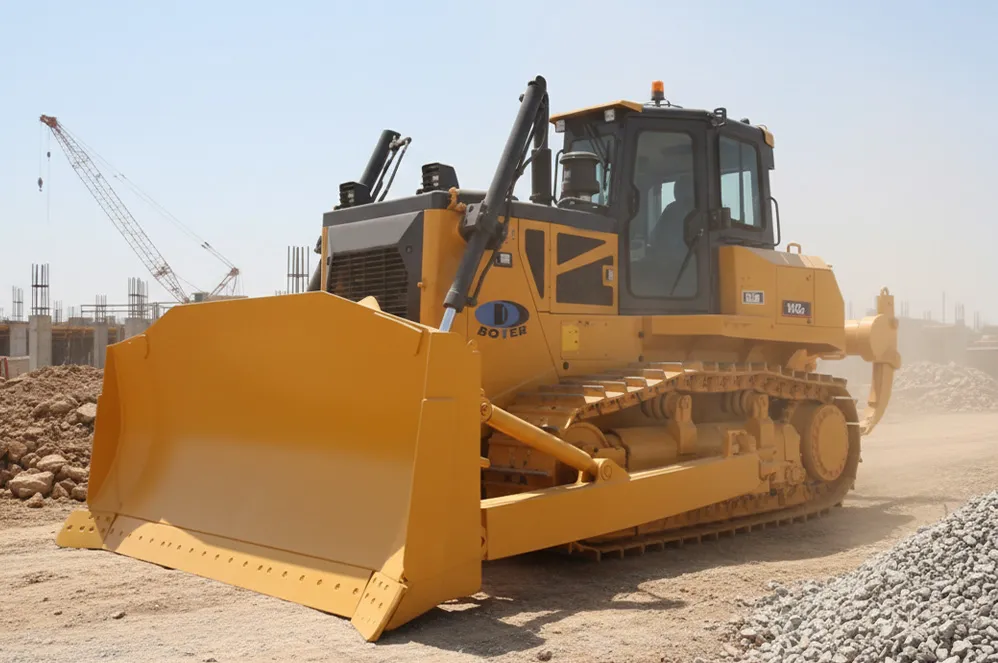

The Shantui DH24C3 is a dozer from Shantui with 198 kW power and a 23820 kg operating weight. Full specifications, the current price and finance options are on this page.
Operating Weight: 23820 kg
Engine Power: 198 kW (265 HP) @ 1900 rpm
Fuel Tank: 489 L
The Shantui DH24C3 is a 23.8-tonne construction crawler dozer powered by a 265 HP engine. Its 6.5 m³ blade provides substantial material-moving capacity, while the 368 kN drawbar pull gives strong pushing force for larger earthwork. An optional ripper adds capability when harder patches appear. Ground bearing pressure is 68.3 kPa, and ground clearance reaches 540 mm. Rated gradeability of 30 degrees supports sloped-site applications. The DH24C3 is the largest of Shantui's DH-series construction dozers listed here. Large-plot development and highway earthwork are suitable applications where blade volume affects daily output. A 489-litre fuel tank supports a full working shift. The Shantui DH24C3 bulldozer price is ₹1 crore to ₹1.20 crore. Contractors can consider this dozer machine when smaller models cannot move enough material per pass. Its operating weight places it close to entry-level mining equipment, but its role remains construction earthwork. The optional ripper provides flexibility for changing soil conditions. Buyers working on highway projects can compare its blade capacity and drawbar pull with the DH17B3 before selecting the larger machine. The DH24C3 suits contractors who need higher output across large grading areas without moving fully into mining-class crawler dozers.
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.
Download Brochure
Please fill the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.
Key Highlights of Shantui DH24C3
Features of Shantui DH24C3
Engine and Push Power
Weichai WP12 turbocharged diesel delivering high torque for demanding earthmoving.
Operating weight of about 23,820 kg gives the bulldozer push power for large construction work.
Three selectable power modes let the operator trade fuel efficiency against output as load changes.
The DH24C3 extends Shantui's electronic hydrostatic architecture into the 265 HP class, territory where hydrostatic drive is rare at any price and nearly unheard of from a value brand.
The engineering case: at this power level, intelligent speed-load matching stops the driveline losses that torque-converter machines accept as normal, and counter-rotation in a 25-tonne-class dozer changes how tight sites get worked. Weichai WP12 power keeps the engine within Asia's most available parts ecosystem.
Being early has a price. Large hydrostatic dozers have a short industry track record generally, and this machine's long-term field data is still accumulating. Service capability must be genuinely in place before purchase.
It is for progressive fleet owners in production earthwork who want big-dozer output with hydrostatic control and are equipped to support modern drive electronics.
Common Questions
FAQs about Shantui DH24C3
What is the Shantui DH24C3 dozer price in India?
The Shantui DH24C3 dozer price in India ranges from ₹1 crore to ₹1.20 crore with GST included. Transportation, TCS, warranty, insurance and FOC charges apply on top for the on-road figure — request a quote for exact numbers in your city.
Are finance & EMI options available for the Shantui DH24C3?
Yes, finance and EMI options are available for the Shantui DH24C3 through multiple bank and NBFC partners. Your final EMI and interest rate depend on your confirmed price, down payment, chosen lender, loan tenure and credit profile.
What type of work is the Shantui DH24C3 Dozer suitable for?
The Shantui DH24C3 dozer machine is well suited to grading, land clearing and road-base preparation. At 23.8 tonnes with a 6.5 m³ blade, it’s sized right for that kind of work.
Does the Shantui DH24C3 come with a warranty?
Yes, the Shantui DH24C3 comes with a warranty of 12 months, as provided by Shantui for this model sold in India. Check with the official OEM to confirm the final warranty terms before you buy.
Is service and parts support available for Shantui DH24C3 near me?
Yes, service and parts support for the Shantui DH24C3 is available through Shantui’s dealer network. Confirm service and parts availability for your specific location before buying.
What is the operating weight of the Shantui DH24C3?
The Shantui DH24C3 has an operating weight of 23.8 tonnes in standard trim, placing it in the construction dozer category priced around ₹1-1.20 crore.
What engine does the Shantui DH24C3 use?
The Shantui DH24C3 uses a Weichai WP12G290E304 engine that produces 265 HP (198 kW). This pairs with 368 kN of drawbar pull for grading and pushing work.
What is the blade capacity of Shantui DH24C3?
The standard blade on the Shantui DH24C3 holds 6.5 m³, giving it a solid working range for grading, land clearing and road-base preparation.
Does the Shantui DH24C3 come with a ripper?
The Shantui DH24C3 offers an optional ripper for sites where grading work occasionally runs into harder ground.
What is the fuel tank capacity of Shantui DH24C3?
The Shantui DH24C3 has a fuel tank capacity of 489 L, enough to support a full working day without a mid-shift refuel.
