The CASE 1650L is a dozer from CASE with 107 kW power and a 17960 kg operating weight. Full specifications, the current price and finance options are on this page.
Operating Weight: 17960 kg
Engine Power: 107 kW (146 HP) @ 2200 rpm
Fuel Tank: 300 L

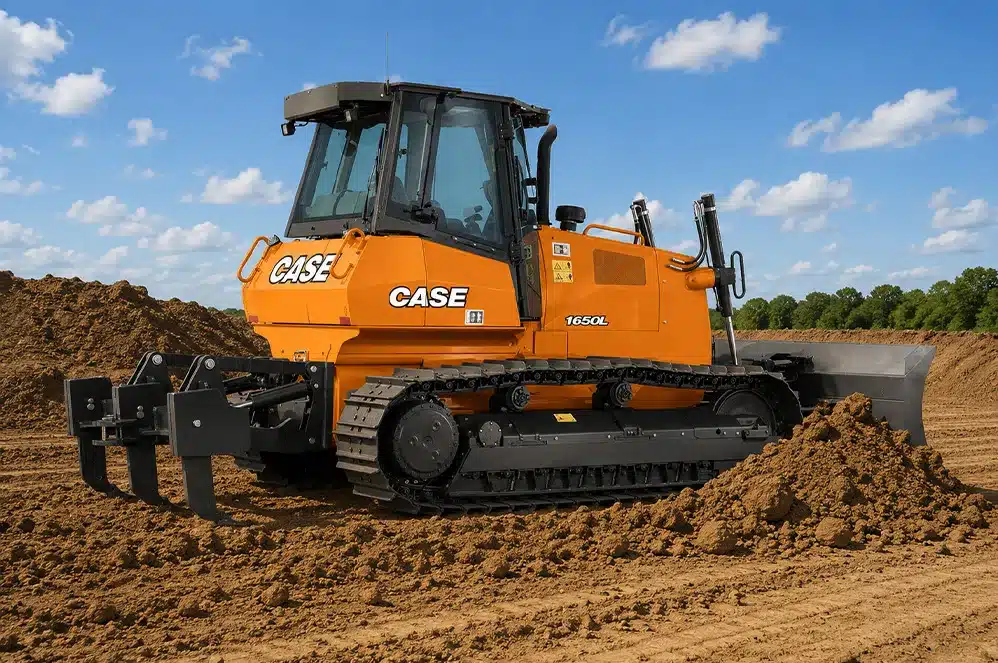

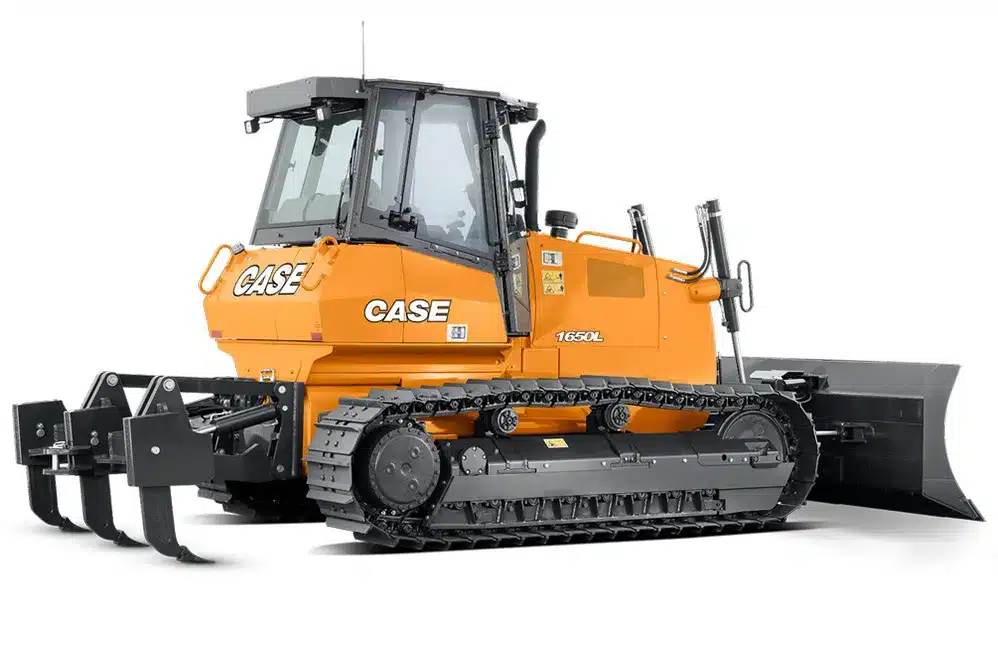

The CASE 1650L is an 18-tonne construction crawler dozer powered by a 146 HP engine. Its 3.5 m³ blade handles regular grading, while the 275 kN drawbar pull gives it useful force through compacted subgrade. Ground bearing pressure remains at 46.1 kPa, helping the machine work across reasonably soft construction surfaces. An optional 3-shank ripper adds around 1.6 tonnes and reaches 478 mm for light breaking work. The machine sits between the 1150L and 2050M, making it a middle option for contractors needing more capacity without the size of the larger model. A 300-litre fuel tank supports standard site shifts, while ground clearance is 347 mm. Plot preparation before foundation work, road-base preparation and general site grading are suitable applications. The CASE 1650L bulldozer price is ₹90 lakh to ₹1.10 crore. A contractor who has outgrown a mini dozer can consider this dozer machine for regular construction work. Its optional ripper also allows occasional breaking without changing the main grading role. Buyers can compare the 1650L against the 1150L when blade volume and operating weight begin affecting daily output. It provides a practical middle position in CASE's construction crawler dozer range.
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.
Download Brochure
Please fill the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.
Key Highlights of CASE 1650L
Features of CASE 1650L
Engine and Push Power
FPT Industrial diesel producing approximately 143 hp (107 kW) net for heavy construction work.
Torque and common rail injection keep dig and push capacity consistent on rough terrain.
Fuel use and operating cost were the design targets, and that tells over a bulldozer's working life.
Drive and Steering
Dual-path hydrostatic drive sends traction power to each track independently, which improves maneuvering.
Single-lever electronic control keeps steering and blade adjustments smooth under heavy load.
Low-effort electronic dozer blade control runs several functions at once during finish grading.
Undercarriage and Frame
Hydraulic track adjustment with grease injection extends track life in abrasive conditions.
Sealed, lubricated pins with front and rear track guides hold traction and reduce maintenance stops.
Reinforced undercarriage and triple-reduction final drive are built for long service on large sites.
Cab and Service Access
ROPS/FOPS cab comes with air conditioning and adjustable seating, which counts on a dozer machine running long shifts.
Ergonomic joystick covers speed, steering and blade control with low effort.
Visibility is good, and reverse gear warning, lights, mirrors and transmission protection are standard.
2 helical gear reductions to planetary; ratio 61.4:1
PERFORMANCE
Max Drawbar Pull
275 kN
Gradeability
NA
Min Turning Radius
NA
STEERING & BRAKES
Steering Type
Hydrostatic (differential-speed), single joystick
Brakes
Hydrostatic + SAHR parking brake
UNDERCARRIAGE
Suspension
Two-tier structural steel chassis
No of Bottom Rollers
8
No of Top Rollers
2
Track Shoes (Each Side)
45
Track Shoe Width
559 mm
Grouser Height
NA
Track Gauge
1,880 mm
Ground Contact Area
34,093 cm²
Ground Bearing Pressure
46.1 kPa
DOZER BLADE
Standard Blade Type
PAT (Pitch Angle Tilt)
Blade Capacity
3.5 m³
Blade Width x Height
3,200 x 1,183 mm
Max Lift Above Ground
950 mm
Max Drop Below Ground
490 mm
Blade Tilt Adjustment
NA
Blade Options
PAT std
RIPPER
Ripper Availability
3-shank ripper optional (1,600 kg); penetration 478 mm
HYDRAULIC SYSTEM
Hydraulic Pump
NA
Maximum Flow
132 L/min @ 2,200 rpm
Relief Pressure
20.7 MPa
Blade Control
Single electro-hydraulic lever, 6 functions
MACHINE WEIGHTS
Operating Weight
17,960 kg
Weight Basis
XLT tracks, cab, PAT blade, full fuel, 77 kg operator
STATIC DIMENSIONS
Overall Length
6,801 mm
Overall Width
3,200 mm
Overall Height
3,285 mm
Min. Ground Clearance
347 mm
SERVICE CAPACITIES
Fuel Tank
300 L
Engine Oil
16.4 L (with filter)
Engine Coolant
32 L
Hydraulic System
98.4 L
Transmission System
NA (HST)
Final Drive (Each Side)
14.2 L
OPERATOR ENVIRONMENT
Operator Station
ROPS/FOPS cab with AC, air-suspension seat
AC Cabin
Standard
Monitoring
Digital hour meter / diagnosis / service reminder, warning lights & audible alarms
Why Choose CASE 1650L
The 1650L scales CASE's hydrostatic grading formula to the mid class: more power and blade behind the same dual-path drive, electronic tracking and PAT configuration as the 1150L.
For the buyer, the step up means one machine covers heavier cutting and larger sites while keeping the finish capability. The productivity of a mid-size dozer, without surrendering the grading precision that justifies CASE's approach.
The caveat is unchanged from its smaller sibling: a sophisticated machine that depends on trained service and CASE's comparatively limited Indian dozer network, competing against simpler machines that cost less to support.
Choose it for contractors whose projects have outgrown a small finish dozer but whose work remains grading-led. Larger site developments, road formation and commercial earthwork.
Common Questions
FAQs about CASE 1650L
What is the CASE 1650L dozer price in India?
The CASE 1650L dozer price in India ranges from ₹90 lakh to ₹1.10 crore with GST included. Transportation, TCS, warranty, insurance and FOC charges apply on top for the on-road figure — request a quote for exact numbers in your city.
Are finance & EMI options available for the CASE 1650L?
Yes. Multiple lenders offer finance for the CASE 1650L. Your actual EMI and interest rate depend on your confirmed price, down payment, chosen lender, loan tenure and credit profile.
What type of work is the CASE 1650L Dozer suitable for?
The CASE 1650L dozer machine is well suited to grading, land clearing and road-base preparation. At 18.0 tonnes with a 3.5 m³ blade, it’s sized right for that kind of work.
Does the CASE 1650L come with a warranty?
Warranty coverage for the CASE 1650L runs to 12 months / 2000 hrs, standard from CASE on this model in India. It’s worth checking the final terms with the official OEM before you buy.
Is service and parts support available for CASE 1650L near me?
Yes, CASE’s dealer network supports the CASE 1650L with service and parts. Check availability for your location before finalising your purchase.
What is the operating weight of the CASE 1650L?
The CASE 1650L has an operating weight of 18.0 tonnes in standard trim, placing it in the construction dozer category priced around ₹90 lakh-1.10 crore.
What engine does the CASE 1650L use?
The CASE 1650L uses a FPT Industrial F4HE9684U engine that produces 146 HP (107 kW). This pairs with 275 kN of drawbar pull for grading and pushing work.
What is the blade capacity of CASE 1650L?
The standard blade on the CASE 1650L holds 3.5 m³, giving it a solid working range for grading, land clearing and road-base preparation.
Does the CASE 1650L come with a ripper?
The CASE 1650L offers an optional 3-shank ripper, adding about 1.6 tonne and penetrating 478 mm for sites where grading work occasionally runs into harder ground.
What is the fuel tank capacity of CASE 1650L?
The CASE 1650L has a fuel tank capacity of 300 L, enough to support a full working day without a mid-shift refuel.
