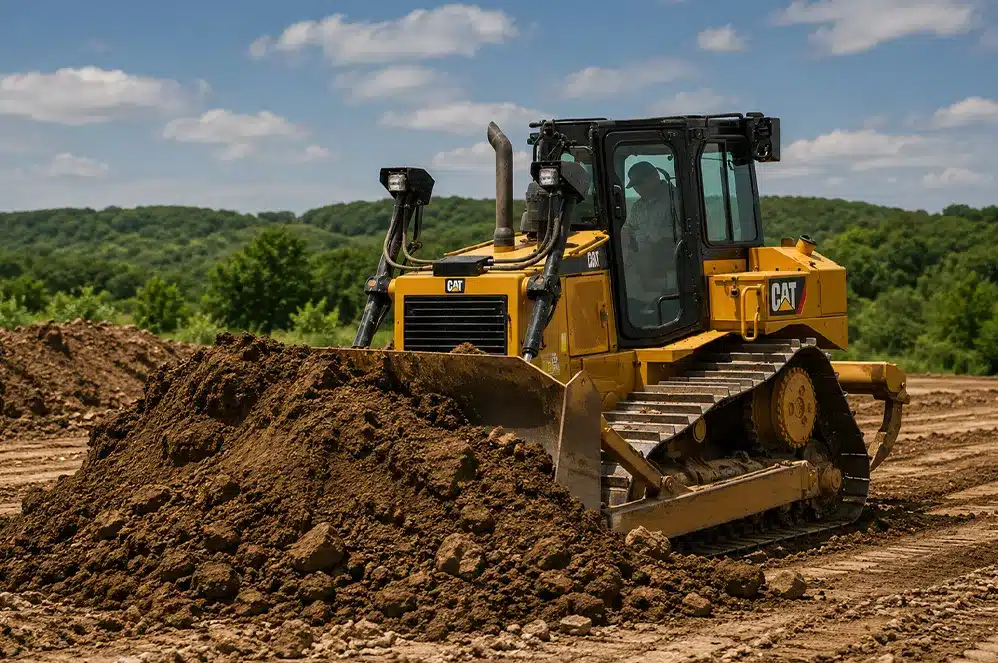

The Cat D5R2 is a dozer from Caterpillar with 130 kW power and a 16032 kg operating weight. Full specifications, the current price and finance options are on this page.
Operating Weight: 16032 kg
Engine Power: 130 kW (174 HP) @ 1700 rpm
Fuel Tank: 299 L
The Cat D5R2 is a 16-tonne construction crawler dozer with a 174 HP engine and 3.31 m³ blade. Its 54.2 kPa ground bearing pressure suits regular site work, while an optional 3-shank ripper reaches 475 mm for occasional light rock. Pry-out force reaches 125.8 kN for that breaking application. The machine is the smaller of Cat's two listed mid-range construction dozers. Its 299-litre fuel tank supports all-day grading, while ground clearance is 419 mm. The D5R2 focuses on controlled grading and site preparation rather than maximum material volume. SU, angle and VPAT blade configurations provide different working options. A landfill blade variant reaches 5.65 m³ for waste-handling applications. The Cat D5R2 bulldozer price is ₹95 lakh to ₹1.15 crore. Contractors working on smaller site-development projects can consider this dozer machine where blade control and regular grading matter. The optional ripper gives it some flexibility when soil changes to softer rock. Its operating weight remains below the D6R2, making it more suitable for smaller construction areas. Buyers can choose the D5R2 when the larger model would add unnecessary capacity. It provides a balanced combination of engine power, blade control and optional breaking capability for regular construction work.
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.
Download Brochure
Please fill the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.
The D5R2 is Cat's small dozer built around one defining feature: a fully electro-hydraulic VPAT blade, variable in pitch, angle and tilt, controlled from the operator's fingertips.
That blade is why owners buy it. One machine handles rough dozing, backfilling, spreading and finish grading, and the electro-hydraulic control makes precision repeatable instead of depending on a master operator. Behind it sits the Cat dealer organisation and a resale record the rest of the industry is measured against.
You are paying for the badge and the blade, and that should be said plainly. Value-brand machines in this power class do plain pushing for far less money, and the electro-hydraulic system needs dealer-level diagnostics when it faults.
It fits contractors whose work is grading-led, roads, site development and utilities, and owners who bank on Cat resale value when the fleet turns over.
Common Questions
FAQs about Cat D5R2
What is the Cat D5R2 dozer price in India?
In India, the Cat D5R2 is priced between ₹95 lakh and ₹1.15 crore, GST included. On-road costs add transportation, TCS, warranty, insurance and FOC where applicable, so confirm the final number with a formal quote for your location.
Are finance & EMI options available for the Cat D5R2?
Yes. Multiple lenders offer finance for the Cat D5R2. Your actual EMI and interest rate depend on your confirmed price, down payment, chosen lender, loan tenure and credit profile.
What type of work is the Cat D5R2 Dozer suitable for?
Cat D5R2’s typical applications include grading, land clearing and road-base preparation, matched to its 16.0-tonne frame and 3.31 m³ blade.
Does the Cat D5R2 come with a warranty?
Warranty coverage for the Cat D5R2 runs to 12 months / 2000 hrs, standard from Caterpillar on this model in India. It’s worth checking the final terms with the official OEM before you buy.
Is service and parts support available for Cat D5R2 near me?
Yes, Caterpillar’s dealer network supports the Cat D5R2 with service and parts. Check availability for your location before finalising your purchase.
What is the operating weight of the Cat D5R2?
In standard trim, the Cat D5R2 comes to 16.0 tonnes, matching the construction dozer class it’s built for.
What engine does the Cat D5R2 use?
Cat C7.1 ACERT supplies the engine for the Cat D5R2, rated at 174 HP (130 kW). Drawbar pull is rated at NA.
What is the blade capacity of Cat D5R2?
Blade capacity for the Cat D5R2 is 3.31 m³, matched to grading, land clearing and road-base preparation.
Does the Cat D5R2 come with a ripper?
An optional 3-shank ripper extends the Cat D5R2 into light rock-breaking work when the ground turns harder than expected.
What is the fuel tank capacity of Cat D5R2?
Fuel capacity for the Cat D5R2 comes to 299 L, sized for uninterrupted full-day operation.
