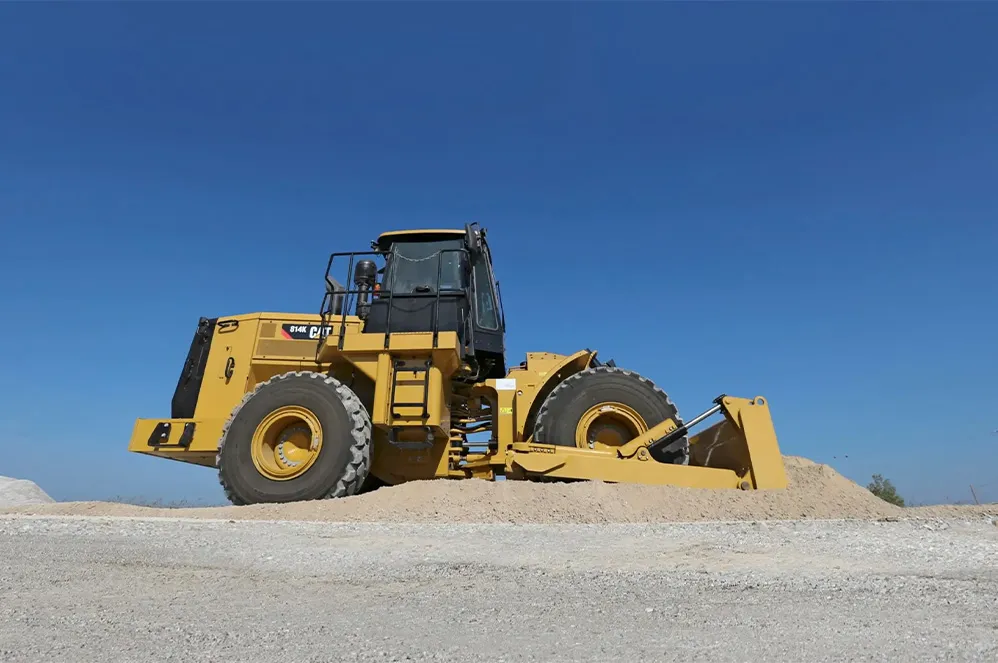

Caterpillar 814K Dozer

By

Price on request Last updated: Oct 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

The Caterpillar 814K is a dozer from Caterpillar with a 21950 kg operating weight and a 248 HP engine. The price is available on request. Get the on-road price for a new unit here, or enquire for a used dozer, a rental, an EMI plan or spare parts.

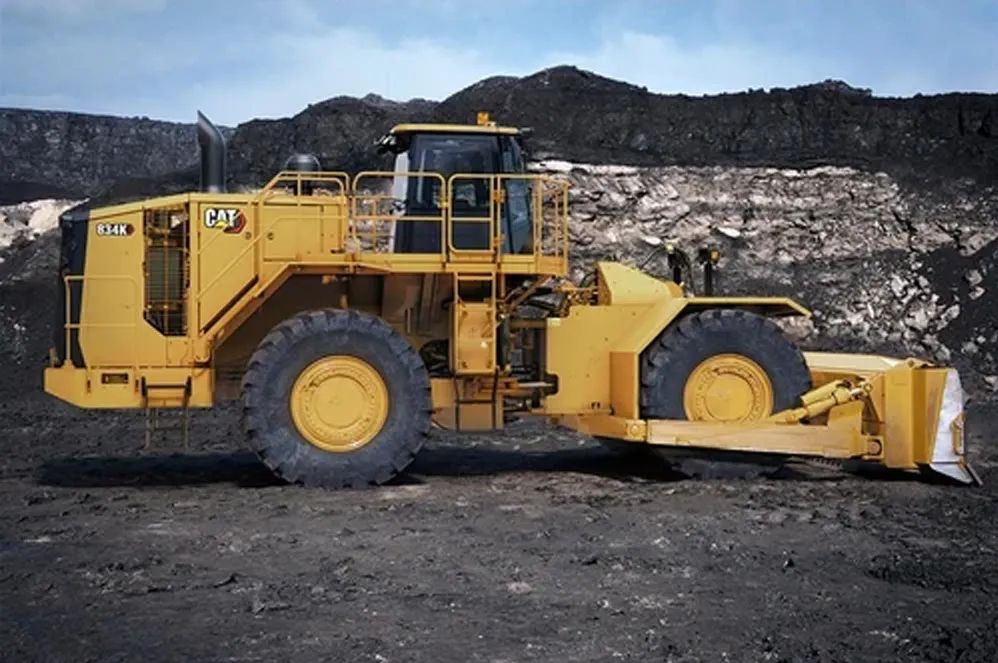

Caterpillar 834K dozer
Wheel Dozer
Caterpillar 814K

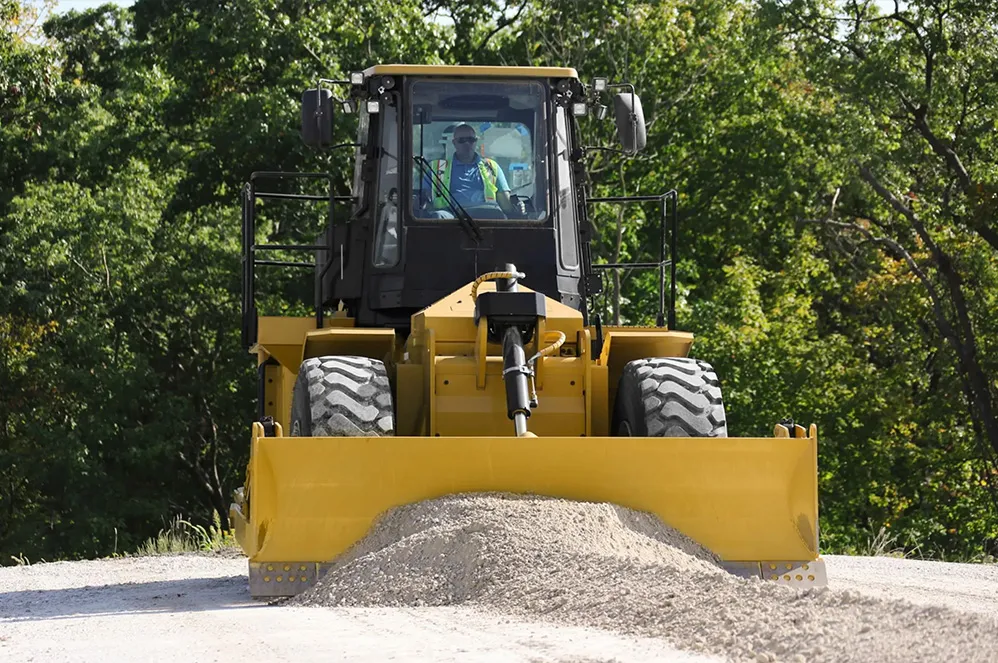

Caterpillar 834K dozer
  • Engine

    Caterpillar 248 HP

  • Weight

    21950 kg

  • Blade Capacity

    2.84 m3

  • Blade Type

    Straight

  • Blade W x H

    3656 mm x 1001 mm

  • Speeds (F/R)

    4F / 4R

Connect With Us:

Planning to buy the Caterpillar 814K Dozer in India? Get the best price, EMI & finance options, and delivery timelines by submitting a quick enquiry.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of Caterpillar 814K

Engine Make

Cat C7.1 ACERT

Max Forward Speed

30.5 km/h

Fuel Tank

500 L

Overall Width

NA

Specifications of Caterpillar 814K

ENGINE

  • Engine Model

    Cat C7.1 ACERT

  • Type

    Turbocharged, ACERT Technology, SCraftertreatment (Tier 4 Final)

  • No. of Cylinders

    NA

  • Displacement

    7.01 L

  • Rated Engine Power (Net)

    248 HP (185 kW)

  • Max. Torque

    1219 Nm @ 1,400 rpm

TRANSMISSION

  • Transmission Type

    Cat Planetary Power Shift (APECS)

  • Torque Converter

    NA

  • Speeds (F/R)

    4F / 4R

  • Max. Forward Speed

    30.5 km/h

  • Max. Reverse Speed

    34.6 km/h

  • Final Drive

    NA

STEERING & BRAKES

  • Steering Type

    Articulated, full-hydraulic power steering, STIC lever operated

  • Brakes

    Wet single-disc brakes, hydraulically actuated, electro-hydraulic parking

AXLES & TIRES

  • Drive System

    NA

  • Axle - Front

    Planetary – Fixed

  • Axle - Rear

    Planetary – Oscillating (±10°)

  • Wheelbase

    3350 mm

  • Tire Size

    NA

BLADE / DOZER EQUIPMENT

  • Std. Blade Capacity

    2.84 m³

  • Blade Width x Height

    3656 mm x 1001 mm

  • Max. Lift Above Ground

    NA

  • Max. Drop Below Ground

    493 mm

  • Blade Tilt Adjustment

    802 mm

  • Blade Options

    NA (straight only)

HYDRAULIC SYSTEM

  • Pump Type

    Variable displacement piston pump

  • Pump Flow

    89 L/min @ 2,200 rpm

  • Relief Pressure

    22.0 MPa

  • Blade Control

    Lever, electro-hydraulic (STIC)

DIMENSIONS & WEIGHT

  • Operating Weight

    21,950 kg

  • Overall Length with Blade

    7190 mm

  • Overall Width

    NA

  • Overall Height

    3994 mm

  • Ground Clearance

    413 mm

SERVICE CAPACITIES (L)

  • Fuel Tank

    500 L

  • Engine Oil

    20 L

  • Cooling System

    81 L

  • Hydraulic System

    75 L

  • Transmission / Torque Converter

    50 L

  • Final Drive (each side)

    65 L

OPERATOR ENVIRONMENT

  • Standard Operator Station

    Sound-suppressed, pressurized ROPS/FOPS cab

  • AC Availability

    Standard

  • Monitoring / Instrumentation

    VIMS, Cat Product Link

Features of Caterpillar 814K

Fuel-Efficient Cat Engine

  • 286 HP Cat C7.1 ACERT engine delivers reliable power with lower fuel consumption for daily earthmoving operations.

  • 21,950 kg operating weight provides excellent traction, stability, and efficient material handling performance.

  • Advanced electronic engine management optimizes power delivery while reducing operating costs.

Compact Performance for Heavy Work

  • 2.84 m³ blade capacity ensures efficient stockpile management and productive dozing in quarry applications.

  • APECS powershift transmission delivers smoother shifting for faster production cycles and improved machine control.

  • Load-sensing hydraulic system supplies hydraulic flow only when required, improving overall efficiency.

Comfortable Operator Environment

  • STIC steering combines steering and transmission controls, reducing operator effort during long working hours.

  • Pressurized cab with automatic climate control provides a comfortable and low-noise operating environment.

  • Product Link and VIMS systems simplify fleet monitoring and preventive maintenance planning.

Built for Long-Term Reliability

  • Full box-section frame resists twisting forces for superior durability in demanding construction environments.

  • Ground-level service points simplify inspections, reducing maintenance downtime and increasing machine uptime.

  • Heavy-duty structural components deliver dependable performance throughout extended machine life.
