Caterpillar 824K Dozer

By

Price on request Last updated: Oct 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

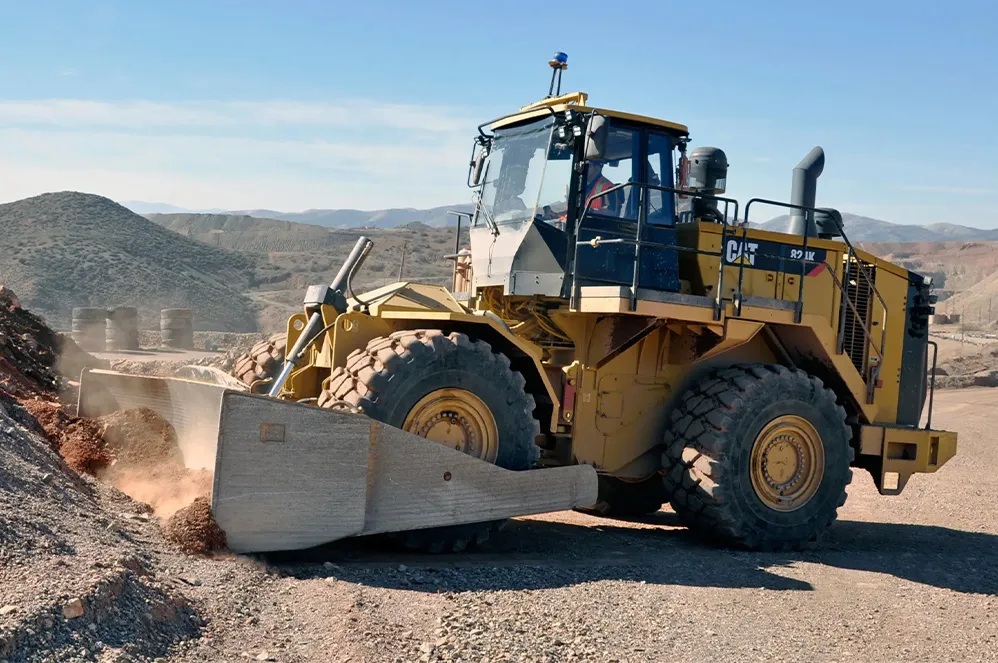

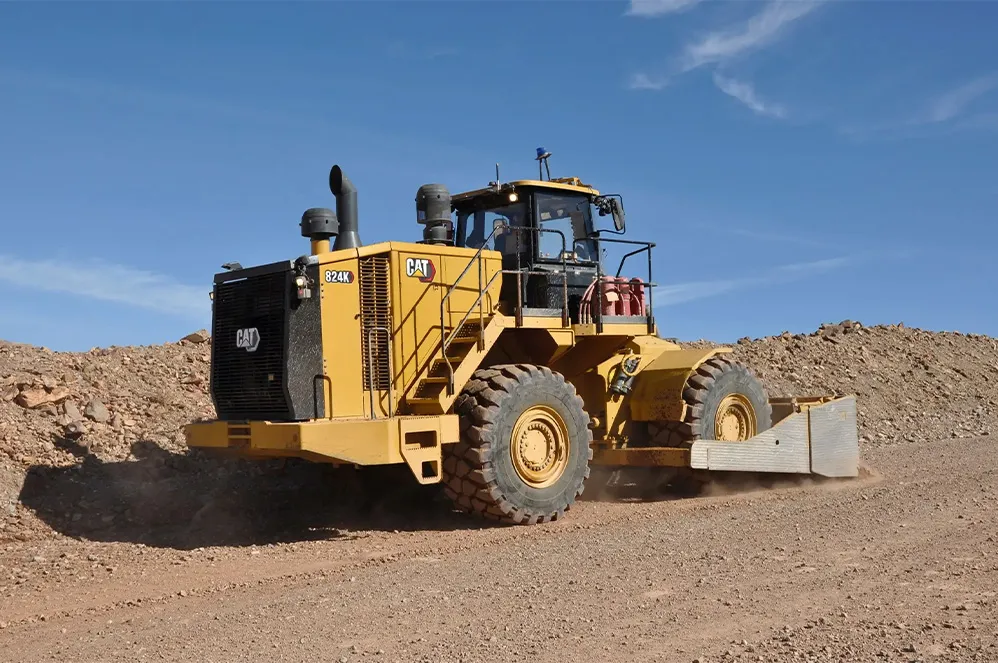

The Caterpillar 824K is a dozer from Caterpillar with a 34004 kg operating weight and a 405 HP engine. The price is available on request. Get the on-road price for a new unit here, or enquire for a used dozer, a rental, an EMI plan or spare parts.

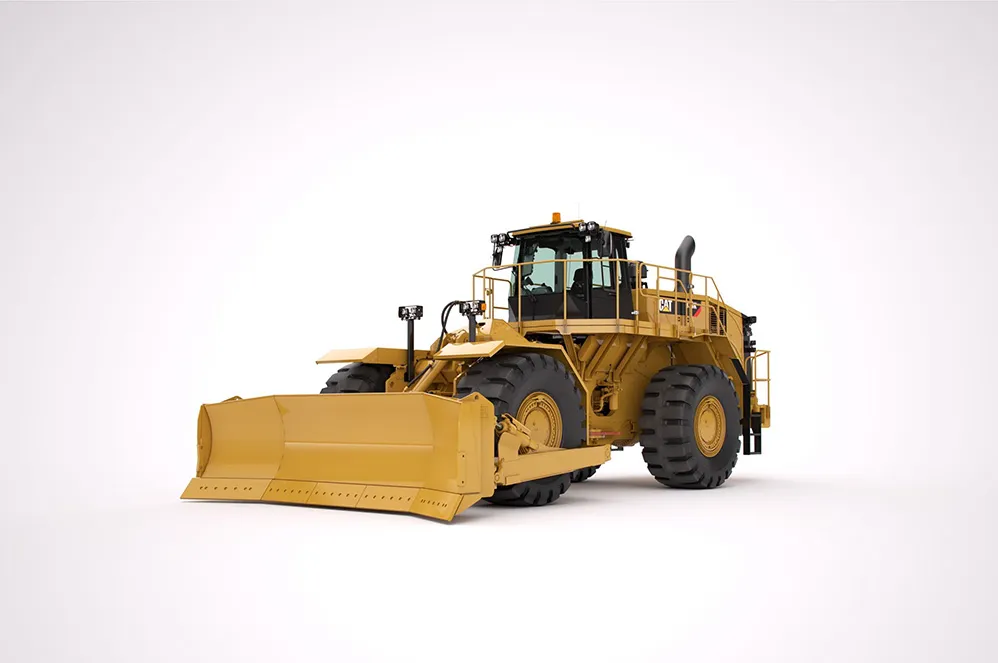

Caterpillar 834K dozer
Wheel Dozer
Caterpillar 824K
Caterpillar 834K dozer
Caterpillar 834K dozer
  • Engine

    Caterpillar 405 HP

  • Weight

    34004 kg

  • Blade Capacity

    5.0 m³

  • Blade Type

    Straight

  • Blade W x H

    4507 mm x 1230 mm

  • Speeds (F/R)

    4F / 4R

Connect With Us:

Planning to buy the Caterpillar 824K Dozer in India? Get the best price, EMI & finance options, and delivery timelines by submitting a quick enquiry.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of Caterpillar 824K

Engine Make

Cat C15 ACERT

Max Forward Speed

34.8 km/h

Fuel Tank

782 L

Overall Width

3365 mm

Warranty

1 Year

Specifications of Caterpillar 824K

ENGINE

  • Engine Model

    Cat C15 ACERT

  • Type

    Turbocharged, ACERT Technology, Electronic Controls

  • No. of Cylinders

    NA

  • Displacement

    15.2 L

  • Rated Engine Power (Net)

    405 HP (302 kW)

  • Max. Torque

    2005 Nm @ 1,300 rpm

TRANSMISSION

  • Transmission Type

    Cat Planetary – Powershift – ECPC (SCSS)

  • Torque Converter

    With Lock-up Clutch (LUC)

  • Speeds (F/R)

    4F / 4R

  • Max. Forward Speed

    34.8 km/h

  • Max. Reverse Speed

    39.7 km/h

  • Final Drive

    NA

STEERING & BRAKES

  • Steering Type

    Articulated, full-hydraulic power steering, STIC lever operated

  • Brakes

    Wet multiple-disc brakes, hydraulically actuated, spring-applied parking

AXLES & TIRES

  • Drive System

    NA

  • Axle - Front

    Planetary – Fixed

  • Axle - Rear

    Planetary – Oscillating (±11°)

  • Wheelbase

    3700 mm

  • Tire Size

    NA

BLADE / DOZER EQUIPMENT

  • Std. Blade Capacity

    5.0 m³

  • Blade Width x Height

    4507 mm x 1230 mm

  • Max. Lift Above Ground

    NA

  • Max. Drop Below Ground

    448 mm

  • Blade Tilt Adjustment

    1167 mm

  • Blade Options

    Straight (5.0 m³), Semi-Universal (7.7 m³), Universal (7.7 m³), Coal (16.2 m³), Extended Wear (8.1 m³)

HYDRAULIC SYSTEM

  • Pump Type

    Variable displacement piston pump

  • Pump Flow

    117 L/min @ 1,800 rpm

  • Relief Pressure

    24.1 MPa

  • Blade Control

    Lever, electro-hydraulic (STIC)

DIMENSIONS & WEIGHT

  • Operating Weight

    34,004 kg

  • Overall Length with Blade

    8422 mm

  • Overall Width

    3365 mm

  • Overall Height

    4100 mm

  • Ground Clearance

    441.4 mm

SERVICE CAPACITIES (L)

  • Fuel Tank

    782 L

  • Engine Oil

    34 L

  • Cooling System

    116 L

  • Hydraulic System

    134 L

  • Transmission / Torque Converter

    66 L

  • Final Drive (each side)

    100 L (Front) / 110 L (Rear )

OPERATOR ENVIRONMENT

  • Standard Operator Station

    Sound-suppressed, pressurized ROPS/FOPS cab

  • AC Availability

    Standard

  • Monitoring / Instrumentation

    VIMS, Cat Product Link, rear camera

Features of Caterpillar 824K

High-Power Earthmoving Performance

  • 435 HP Cat C15 ACERT engine delivers powerful performance for mining, quarrying, and heavy earthmoving applications.

  • 34,004 kg operating weight provides excellent stability and pushing power in demanding material handling operations.

  • Autoshift technology automatically selects optimal gears for smoother operation and improved fuel efficiency.

Precision Dozing Capability

  • Load-sensing hydraulic steering system delivers precise machine control while reducing operator effort.

  • Multiple blade configurations allow efficient handling of stockpiles, overburden, coal, and general earthmoving materials.

  • Responsive electro-hydraulic controls improve grading accuracy and overall productivity.

Advanced Technology & Comfort

  • Product Link and VisionLink provide real-time fleet monitoring, machine location, and fuel usage analysis.

  • Ergonomic operator station with STIC controls improves comfort and reduces fatigue during extended shifts.

  • Air suspension seating and automatic climate control enhance operator productivity in all working conditions.

Durable Design & Easy Maintenance

  • Reinforced box-section frame withstands heavy impacts and harsh mining environments for extended service life.

  • Ground-level maintenance access simplifies daily servicing and minimizes equipment downtime.

  • Intelligent diagnostics help detect issues early, reducing repair costs and maximizing machine availability.
